Fichier produit

Solo 1100 Graphite Twilight 570lm 3000K Ra>80 On/Off


SG Armaturen

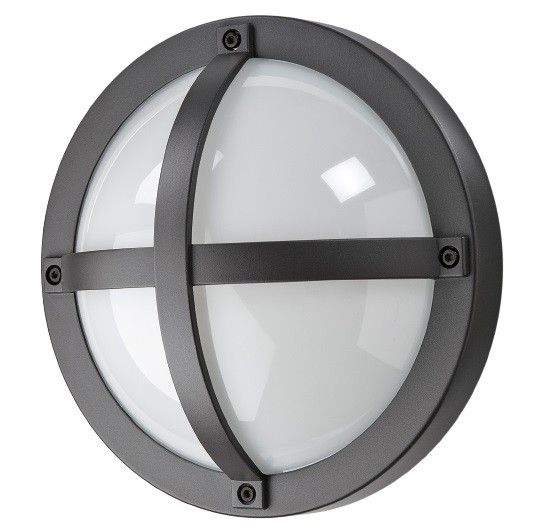

Design: Hallvard Jakobsen Attractive, round wall luminaire with cross that can be installed both indoors and outdoors. Made of die-cast powder-coated aluminium. Diffuser made of UV-stabilised opal polycarbonate. Two inputs/outputs for cables, option of both visible and concealed cabling, and loopable quick clips. Several variants with integrated sensor or dimming relay. Corrosion-proof with 10-year warranty, IP65 and vandal-resistant rating IK10. Light distribution Direct Light technic LED 11.5W 3000K Ra>80 SDCM 3 L70/B50 >50,000 hrs at Ta=25°C Control/Dimming On/Off Protection Class II IP65 IK10 Fire protection class: 850°C - 30s Energy and approvals A+ CE Materials and finish Housing: Aluminium Colour: Graphite Optics: UV-stabilized polycarbonate Mounting/Connection Surface, Indoor / Outdoor Screwless terminal block Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 11,5 W 570 lm 50 lm/W 3000 K 80
Solo 1100 Graphite Twilight 570lm 3000K Ra>80 On/Off

Solo 1100 Graphite Twilight 570lm 3000K Ra>80 On/Off

Surface lumineux 1 (integré)


Type de montage

En applique

Forme et dimensions

Longueur: 270 mm

Largeur: 123 mm

Hauteur: 270 mm




Puissance du système: 11,5 W

Classe de protection: I

Types de protection

IP: 65

IK: 10

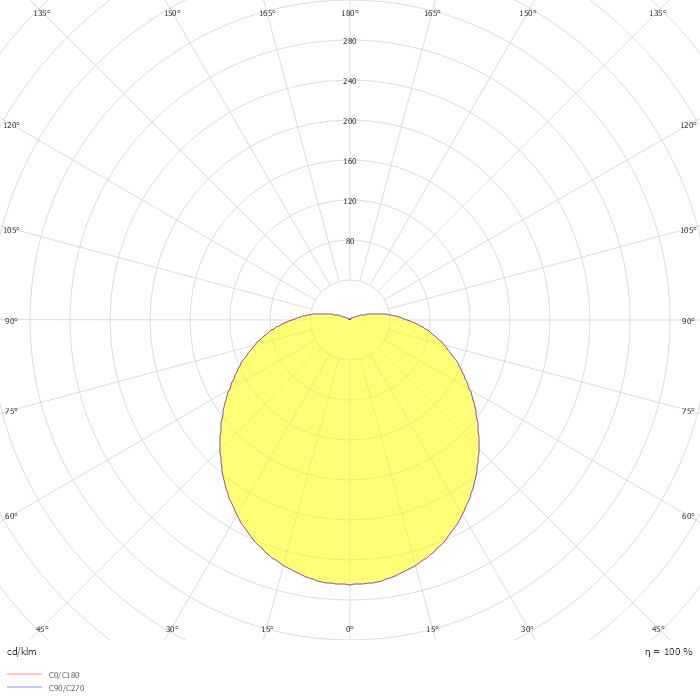

Fichier Photométrique

ZIP file
