Fichier produit

Vision Surface - A2

VA2OEE-840M-L1182

Lightnet

LED surface-mounted luminaire. Direct only light distribution. Light channel made of aluminium profile with 130mm width. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen and satin louver for office purposes. Opal diffuser made of acrylic glass for general lighting. Wallwasher for homogeneous vertical illuminance. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. On request: Integration of emergency lighting components.

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 42 W 4050 lm 96 lm/W 4000 K 82
Vision Surface - A2

Vision Surface - A2

Surface lumineux 1 (integré)

LED

Type de montage

Plafonnier

Forme et dimensions

Longueur: 1182 mm

Largeur: 130 mm

Hauteur: 55 mm

Réglable

Rigide

Électrique

Puissance du système: 42 W

Types de protection

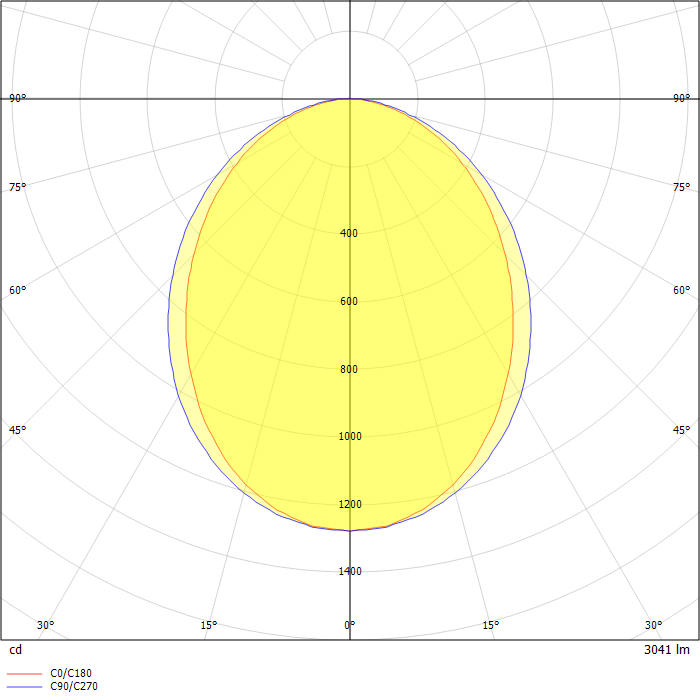

Fichier Photométrique

ZIP file
