Easily installed wall luminaire in the Pave family with stylish design; available with clear or opal glass. Wide light distribution for attractive facade lighting. Plenty of space for easy installation. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Number sign available as an accessory for location at entrances (figures 3x 0-9 and letters 3x A-J). Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. Rear element has dual cable bushings for easy through wiring.
Type de source | Puissance nominative du lampe | Flux totale | Efficacité lumineuse | CCT | CRI |
---|---|---|---|---|---|
LED | 15,29 W | 1364 lm | 89 lm/W | 3000 K | 80 |
Type de montage
En applique
Forme et dimensions
Longueur: 202 mm
Largeur: 352 mm
Hauteur: 245 mm
Réglable
Rigide
Électrique
Puissance du système: 15,29 W
Types de protection
IP: 65
IK: 10
Étiquette: CE

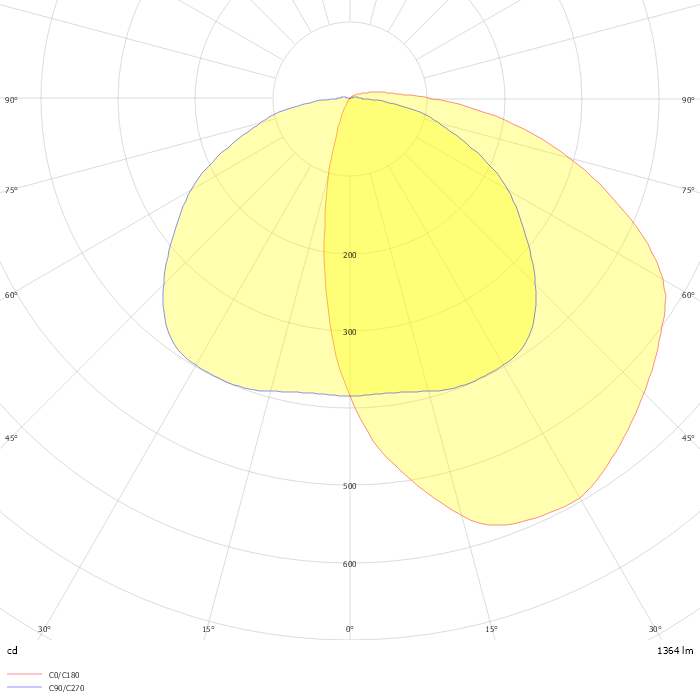

Fichier Photométrique
ZIP file
