Fichier produit

Edge S 3000 4 X 10.5W 50° 4000 K

LL1624.BSPT400EN

GHIDINI

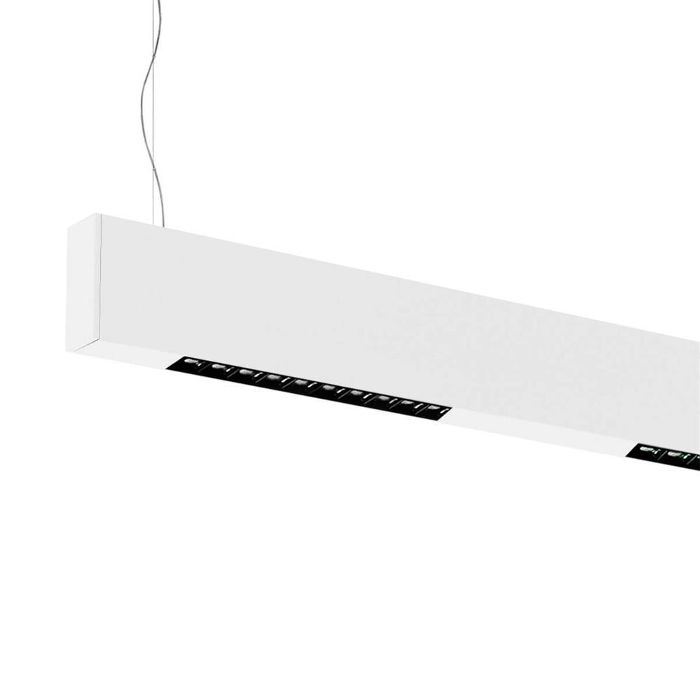

Series of linear suspended luminaires characterized by excellent visual comfort thanks to the "Dark" type optics. Available in various lengths, they are designed for indoor lighting. Mono or bi-emission, they offer a wide range of optics and powers. The construction of the body and the closing caps of the diffuser are in aluminum alloy with high oxidation resistance subjected to treatment with nano-bonderite and textured polyester powder coating, making the product resistant to UV rays ensuring maximum protection over the years. . The luminaire can be wired with the direct lighting of the lower side independently from the indirect one of the upper side.

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 21 W 1547 lm 74 lm/W 4000 K 90
Edge S 3000 4 X 10.5W 50° 4000 K

Edge S 3000 4 X 10.5W 50° 4000 K

Surface lumineux 1 (integré)

LED

Type de montage

Suspendu

Forme et dimensions

Longueur: 2928 mm

Largeur: 43 mm

Hauteur: 90 mm

Réglable

Rigide

Électrique

Puissance du système: 21 W

Classe de protection: I

Types de protection

IP: 20

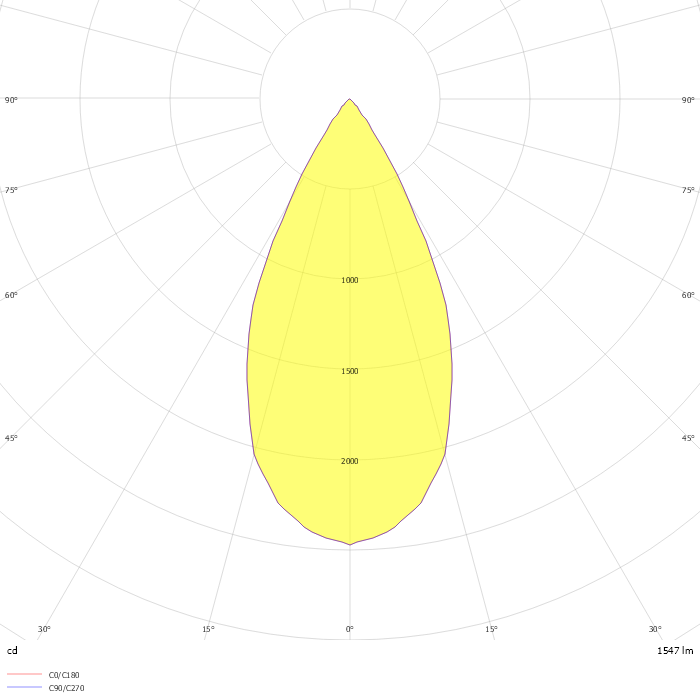

Fichier Photométrique

ZIP file
