Fichier produit

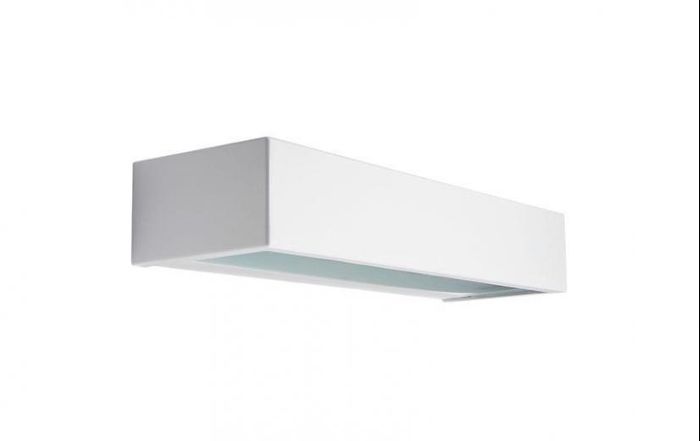

Edge Direct Matt White 10W LED 3000K Ra>80

5046611361

SG Armaturen

Attractive, square wall luminaire for horizontal/vertical installation and indoors/outdoors. Made of die-cast powder-coated aluminium. Glass diffuser. Can be mounted as a down/uplight or as a down or uplight, IP65, integrated LED, mounting back panel with two inputs/outputs for cables, option of both visible and concealed cabling, and loopable quick clips. Corrosion-proof with 10-year warranty, IP65 and vandal-resistant rating IK10. Light distribution: Direct Light technic LED (not exchangeable) 10W 3000K Ra>80 SDCM 3 L70/B50 >50,000 hrs Ta=25°C Control/Dimming Trailing edge dimming Protection Class I IP65 IK06 Energy and approvals A+ CE Materials and finish Housing: Aluminium Colour: Matt white (RAL 9003) Optics: Tempered glass Mounting/Connection Surface, Indoor / Outdoor Screwless terminal block Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 10 W 440 lm 44 lm/W 3000 K 80
Edge Direct Matt White 10W LED 3000K Ra>80

Edge Direct Matt White 10W LED 3000K Ra>80

Surface lumineux 1 (integré)

LED

Type de montage

En applique

Forme et dimensions

Longueur: 320 mm

Largeur: 103 mm

Hauteur: 60 mm

Réglable

Rigide

Design

Couleur du luminaire: Blanc

Électrique

Puissance du système: 10 W

Classe de protection: I

Types de protection

IP: 65

IK: 06

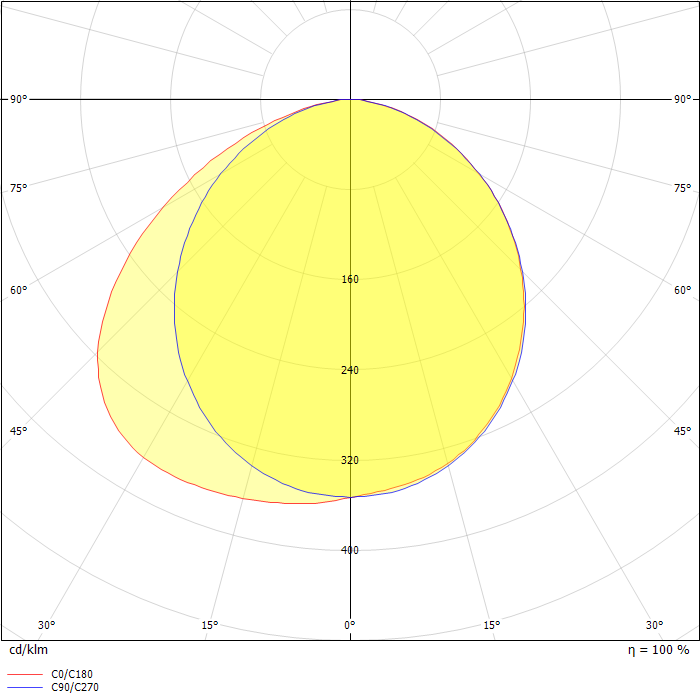

Fichier Photométrique

ZIP file
