Fichier produit

Basic Déco Surface - A3

BA3ASE-840M-D400-W

Lightnet

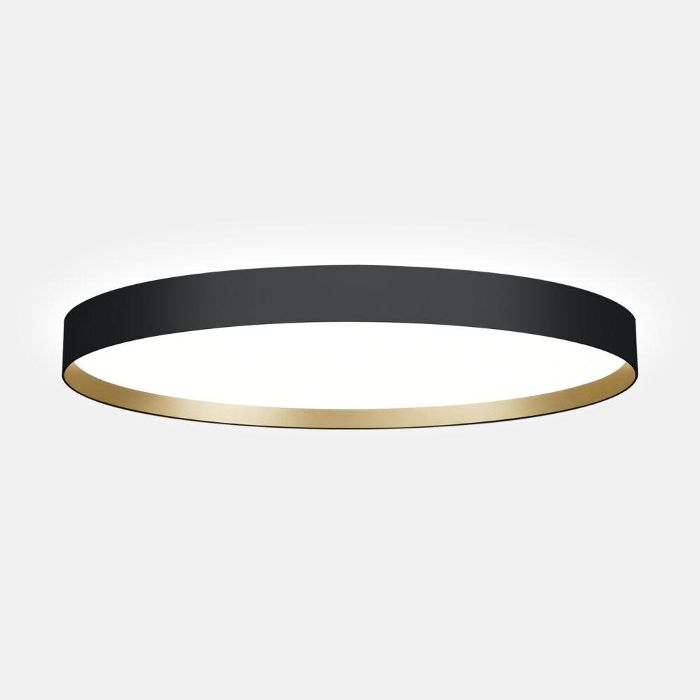

LED surface-mounted luminaire for walls and ceilings. Direct only light distribution. Luminaire body made of aluminium profile with overall height of 58mm. Outer housing and Décorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet Surface Collection or Bi-Colour Selection. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90.

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 14 W 1750 lm 125 lm/W 4000 K 82
Basic Déco Surface - A3

Basic Déco Surface - A3

Surface lumineux 1 (integré)

LED

Type de montage

Plafonnier

Forme et dimensions

Hauteur: 400 mm

Diamètre: 400 mm

Réglable

Rigide

Électrique

Puissance du système: 14 W

Types de protection

Fichier Photométrique

ZIP file
