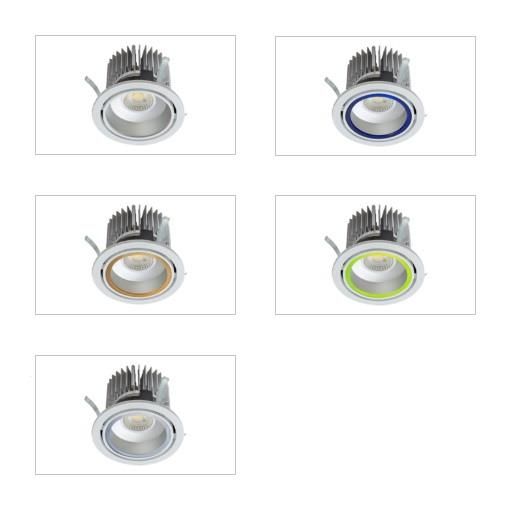

Protec LED High Output - Ø174mm, IP20 Recessed High Output Downlighter with a 60 Degree Lens, ABS housing and bezel, zinc plated spring steel fixing clips and anodised semi specular aluminium reflector and drop glass ring. E3 - Emergency control gear (416 lumens output) - Attachments may reduce emergency lumen ouput. ST3 - Emergency Selftest AT3 - Emergency Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* Replace * with WH for White or GY for Grey Order the luminaire with trim accessory attachment
| Type de source | Puissance nominative du lampe | Flux totale | Efficacité lumineuse | CCT | CRI |
|---|---|---|---|---|---|
| LED | 36,9 W | 4927 lm | 134 lm/W | 4000 K | 80 |
Type de montage
Encastré dans le plafond
Forme et dimensions
Hauteur: 130 mm
Diamètre: 175 mm
Réglable
Rigide
Électrique
Puissance du système: 36,9 W
Alimentation: ECG
Types de protection
IP: 20
Étiquette: CE

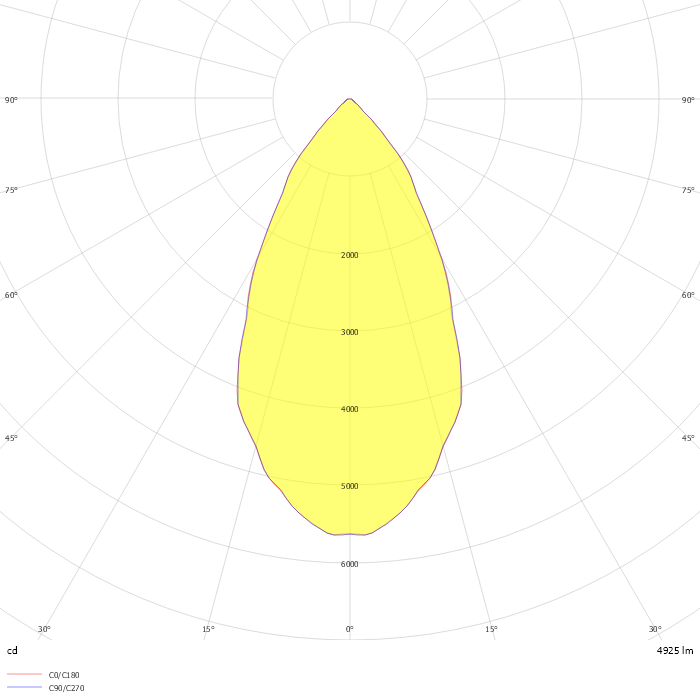

Fichier Photométrique
ZIP file
