Fichier produit

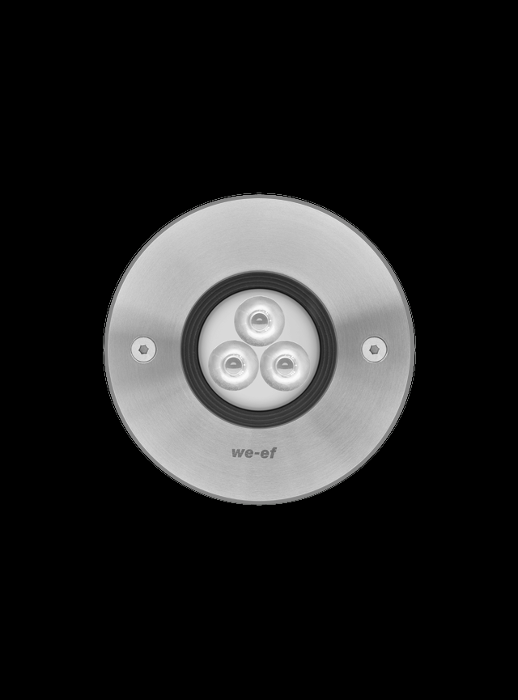

EVC310-FS [EES] VA:IP67:LED-3/6W/3K

185-9937

we-ef

IP67, Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Ampoules disponibles Puissance nominative du lampe Flux lumineux de la source Efficacité lumineuse CCT CRI
3 x LED 2 W 290 lm 80 lm/W 3000 K 80
EVC310-FS [EES] VA:IP67:LED-3/6W/3K

EVC310-FS [EES] VA:IP67:LED-3/6W/3K

Surface lumineux 1

3 x LED

Type de montage

Encastré de sol

Forme et dimensions

Hauteur: 100 mm

Diamètre: 115 mm

Poids: 2,8 kg

Électrique

Puissance du système: 7,5 W

Classe de protection: I

Types de protection

IP: 67

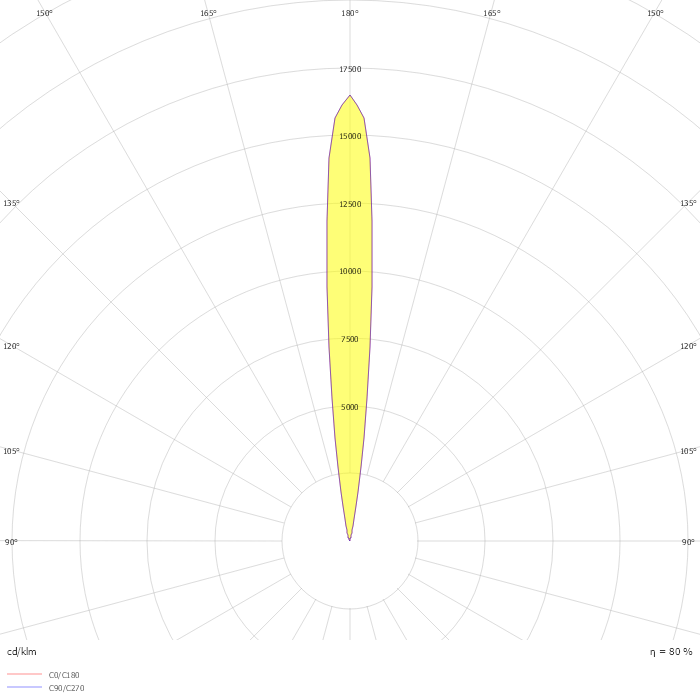

Fichier Photométrique

ZIP file
