Fichier produit

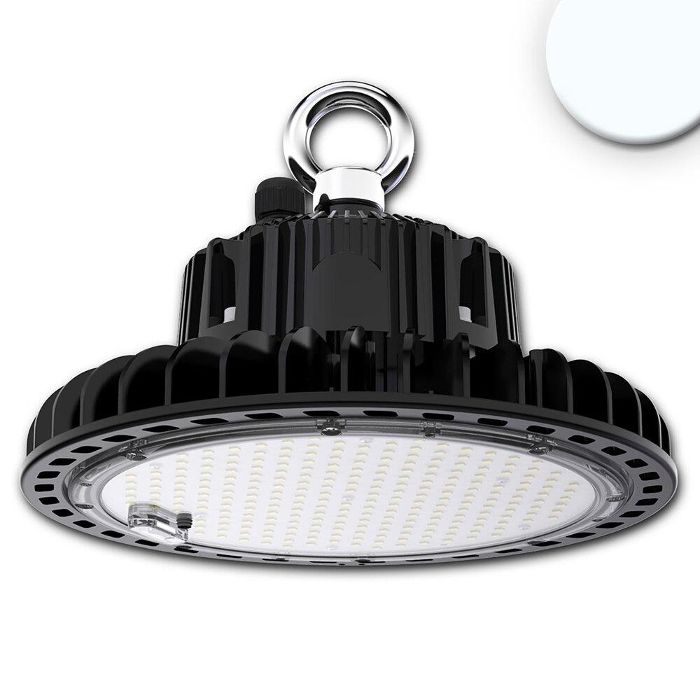

LED Highbay luminaire FL 200W, 60°, IK10, IP65, 1-10V dimmable, cold white
113449
ISOLED
IP
65
IK
10
LED high-bay lightning FL 200W, 60°, IK10, IP65, 1-10V dimmable, cool white, aluminum, black, 280mm, for indoor and outdoor use, shock and impact resistant, 70000 h service life, 5-year warranty, ball impact resistant. | Dimensioned power: 203 W | Effective power: 200 W | Energy efficiency class: C (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: aluminum | Surface color: black | Protection class: IP65 | Allowable ambient Temperatures: -20° - 40° C | Diameter: 280 mm | Beam angle: 60° fixed | Color temperature: 5700K | Color rendering index: 80 (Ra 1-8) | Luminous flux: 28000 lm | 1-10V dimmable | Incl. external replaceable transformer | suitable for indoor and outdoor use | suitable for operating sites with a fire hazard | shock and impact resistant | service life: 70000 h (L80|B50) | guarantee: 5 years | special features: Ball-proof compliant with the requirements of VDE DIN 0710-13 / IEC 62262:2002 | Dimming specification: dimmable via 1-10V DC control voltage or rotary potentiometer (100kO) | FABRICATION: ISOLED 113449
Type de montage
Suspendu
Forme et dimensions
Hauteur: 192 mm
Diamètre: 280 mm
Réglable
Rigide
Design
Matériau: Aluminium
Couleur du luminaire: Noir
Électrique
Puissance du système: 200 W
Alimentation: ECG
Contrôleur: Dimmable 1..10V
Types de protection
IP: 65
IK: 10
Étiquette: CE
Autres indicateurs
Niveau de température: -20...40 °C

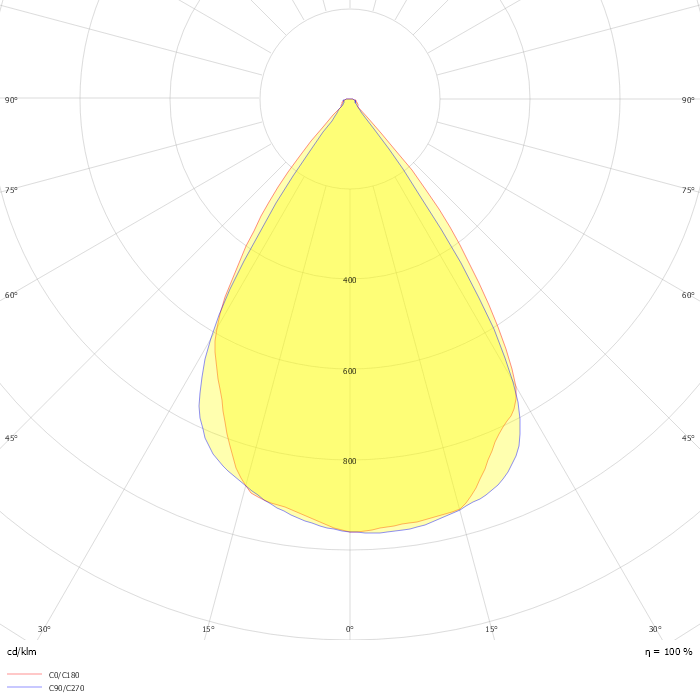

Fichier Photométrique
ZIP file
