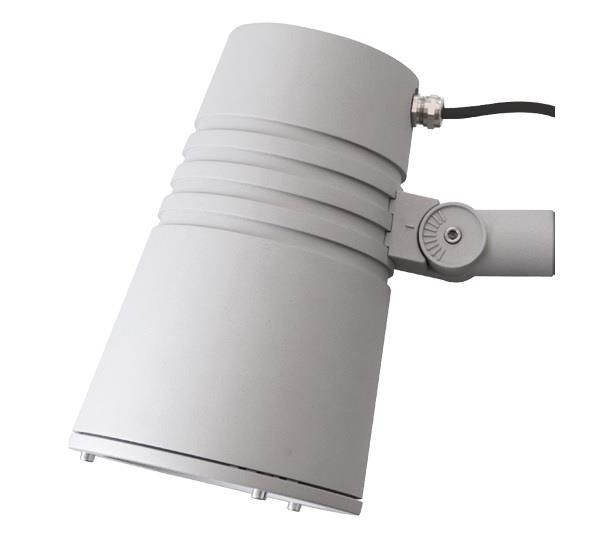

Design: Christian Hvidt Spot LED luminaire. IP66 simple LED luminaire. Base and top made of die-cast aluminium, front made of tempered glass. Light grey or black frame treated for use outdoors. Direct optics with several solutions. Complete with LED driver for operation of LED light sources mounted to component rail. Pre-mounted with connecting cable (10 m). Prepared for mounting on a mast. Safety class II. Wax is as standard available with 13° and 27° reflector (45° reflector on request). Mast and wall consoles are not included but are sold separately. Light distribution Direct (Beam angle 27°) Light Technic LED 41W 4000K Ra>80 SDCM 2 L90/B10>100,000 at Ta=25°C Control gear Lumistep LS8 50% Dim Protection Class II IP66 IK07 Energy and approvals A++ CE Materials and finish Housing: Die-cast aluminum Colour: Grey (structure 2150 sablé) Optics: Glass Mounting/Connection Pole, wall, bollard or earthing rod, Outdoor Cable 2x1mm² 10m Wind projected area: 403cm² - Max 4 kg
Type de source | Puissance nominative du lampe | Flux totale | Efficacité lumineuse | CCT | CRI |
---|---|---|---|---|---|
LED | 41 W | 3710 lm | 90 lm/W | 4000 K | 80 |
Type de montage
Montage en top
Forme et dimensions
Longueur: 270 mm
Largeur: 180 mm
Hauteur: 268 mm
Réglable
Rotatif, Orientable
Électrique
Puissance du système: 41 W
Classe de protection: II
Types de protection
IP: 66
IK: 07
Fichier Photométrique
ZIP file
