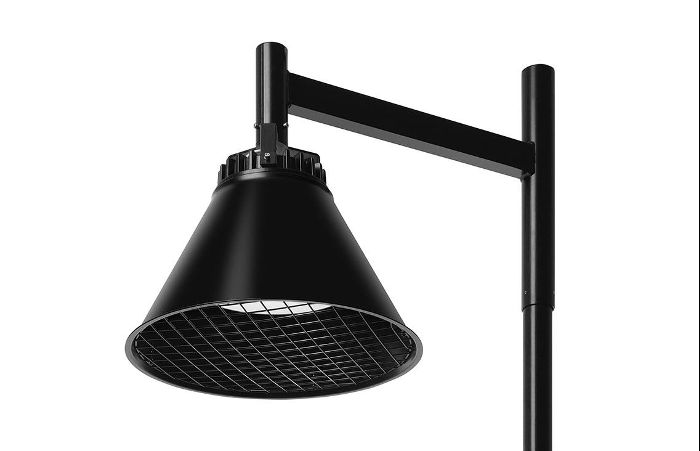

City Pole 555mm (Beige Grey)

3395366

Zero

With its archetypal shape and generous diameter, around half a metre, City has a wide range of applications: outdoor or indoor, enhancing retail environments, industries and public transport. There is no risk of glare as the LED sits high in the characterful, steep cone, which also hides the cast cooling flange. D 555 mm H 342 mm. Shade in painted aluminum, black (RAL 9005) or beige grey (RAL 7006) as standard. Other colours on request. Internal shade in white painted aluminum. Pole fitting/arm needs to be ordered seperately. Can be compleated with internal opal glass shade. Can be made without grid on request. LED info: Luminaire Luminous Flux see above. CCT 3000K. SDCM 3. CRI >80 Installation: On pole D60mm. Connection: Cable and quick-plug included when pole mounted. Design: Thomas Bernstrand 2016

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 32 W 2120 lm 66 lm/W 3000 K 80
City Pole 555mm (Beige Grey)

City Pole 555mm (Beige Grey)

Surface lumineux 1 (integré)

LED

Type de montage

Intégré au mât, Montage en top

Forme et dimensions

Longueur: 555 mm

Largeur: 942 mm

Hauteur: 702 mm

Réglable

Rigide

Design

Couleur du luminaire: Noir

Électrique

Puissance du système: 32 W

Alimentation: ECG

Contrôleur: DALI

Possibilité de passage en coupure

Classe de protection: I

Types de protection

IP: 65

Étiquette: CE

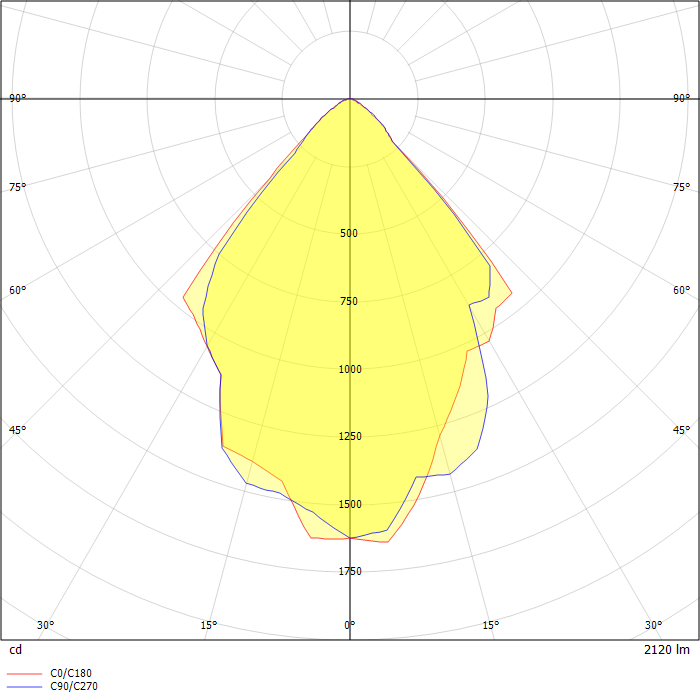

Fichier Photométrique

ZIP file
