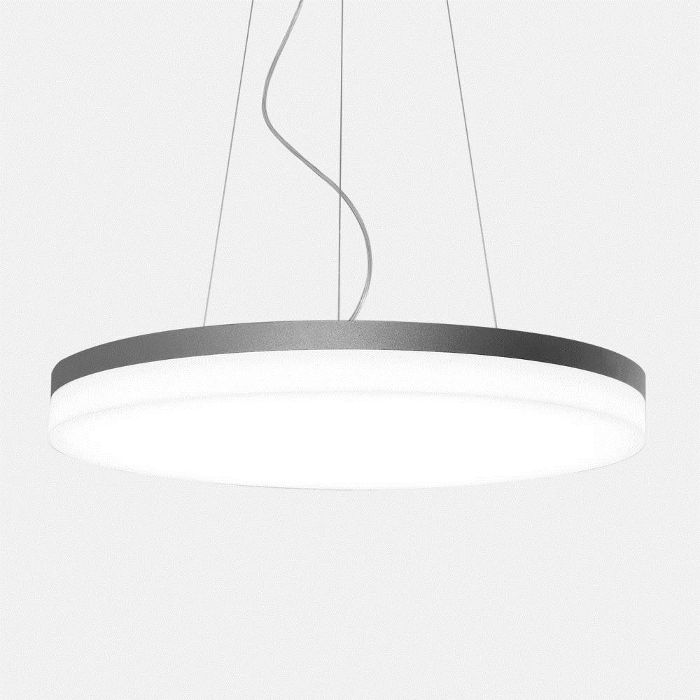

LED pendant luminaire. Omnidirectional light distribution. Luminaire body made of aluminium profile and diffuser with overall height of 60mm. Ambient diffuser made of frosted acrylic glass for general lighting. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Height-adjustable central cord suspension with transparent power supply cable. On request: Integration of emergency lighting components, sensor technology.
Type de source | Puissance nominative du lampe | Flux totale | Efficacité lumineuse | CCT | CRI |
---|---|---|---|---|---|
LED | 13 W | 1711 lm | 132 lm/W | 3000 K | 82 |
Type de montage
Suspendu
Forme et dimensions
Hauteur: 400 mm
Diamètre: 400 mm
Réglable
Réglable en hauteur
Électrique
Puissance du système: 13 W
Types de protection

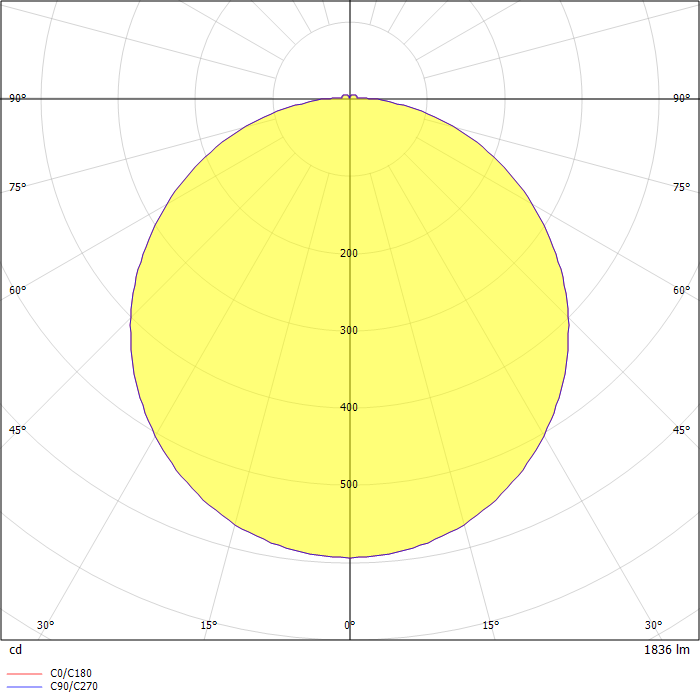

Fichier Photométrique
ZIP file
