Fichier produit

LP Slim Box Surface Mounted Black LED 3000K 25W Prism

91794-1006

louis poulsen

LP Slim Box Surface Mounted Design: Louis Poulsen A/S Concept: The product family shares a high-efficiency light unit framed in a rectangular housing. The recessed variants emit downwardly directed light, while the suspended and surface-mounted variants provide a combination of primarily downwardly directed and indirect light. Choosing between opal diffusers or micro-prismatic solutions, the glare and visual expression can be balanced as desired. The light egress emphasizes the design detail in the housing, ensuring a comfortable and subtle yet distinct design. Finish: White or black, powder coated or clear lacquered, pickled aluminium. Materials: Frame/Housing: Die cast Aluminium Light Engine bottom: Acrylic (Opal or clear) Light Engine top: Acrylic opal Mounting: Directly on ceiling or wall. Looping: Approved, max. 5 x 1.5 mm².​ Integrated driver. Cable entries: Rear, side-mounted. Integrated driver. It can be positioned both vertically and horizontally for wall-mounting. Sizes and weights: Width x Height x Length (mm) 689 x 805 x 150 Max 4.1 kg Class: Ingress protection IP20. Electric shock protection I.

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 25 W 2295 lm 92 lm/W 3000 K 90
LP Slim Box Surface Mounted Black LED 3000K 25W Prism

LP Slim Box Surface Mounted Black LED 3000K 25W Prism

Surface lumineux 1 (integré)

LED

Type de montage

Plafonnier

Forme et dimensions

Longueur: 690 mm

Largeur: 150 mm

Hauteur: 81 mm

Réglable

Rigide

Électrique

Puissance du système: 25 W

Classe de protection: I

Types de protection

IP: 20

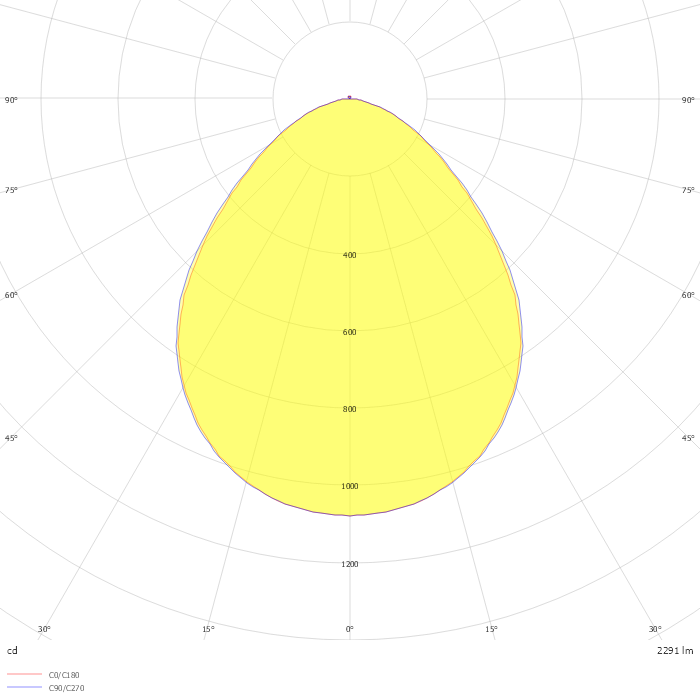

Fichier Photométrique

ZIP file
