Fichier produit

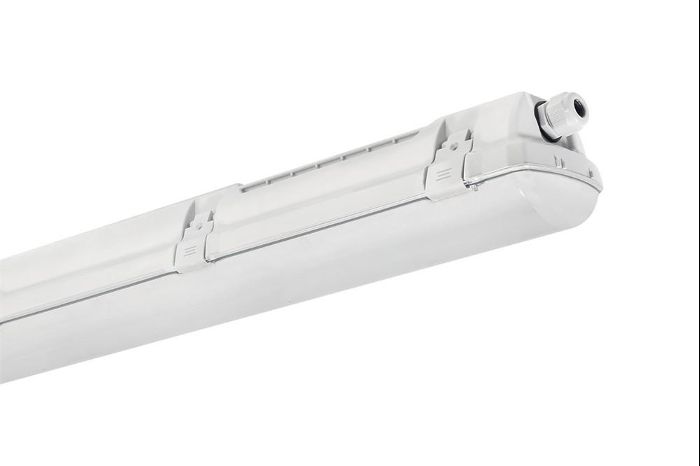

PRIMA 1.4ft SNS PC 3200/840 COR 3F

106514

TREVOS

resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 700 - 960 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; digitally dimmable. DALI driver with corridor function, microwave motion sensor; Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 20,1 W; Luminaire flux: 3030 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|50 °C; Weight: 2,1 kg;

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 20,1 W 3260 lm 162 lm/W 4000 K 80
PRIMA 1.4ft SNS PC 3200/840 COR 3F

PRIMA 1.4ft SNS PC 3200/840 COR 3F

Surface lumineux 1 (integré)

LED

Type de montage

Plafonnier

Forme et dimensions

Longueur: 1175 mm

Largeur: 98 mm

Hauteur: 84 mm

Réglable

Rigide

Design

Matériau: Plastique

Couleur du luminaire: Gris argent, Blanc

Designer: TREVOS

Électrique

Puissance du système: 20,1 W

Alimentation: ECG

Classe de protection: I

Capteurs intégrés

Capteurs intégrés: Détecteur de mouvement

Types de protection

IP: 66

IK: 10

Étiquette: CE, ENEC

Autres indicateurs

Niveau de température: -25...50 °C

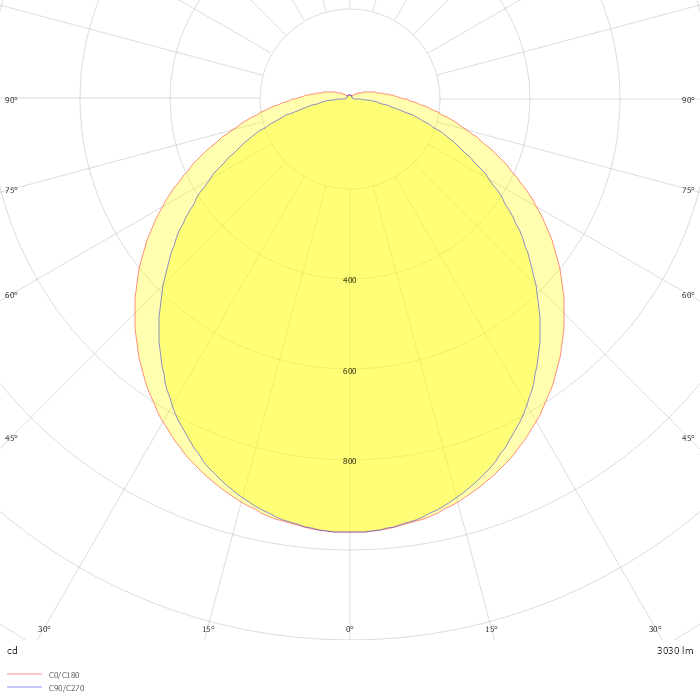

Fichier Photométrique

ZIP file
