Product data sheet

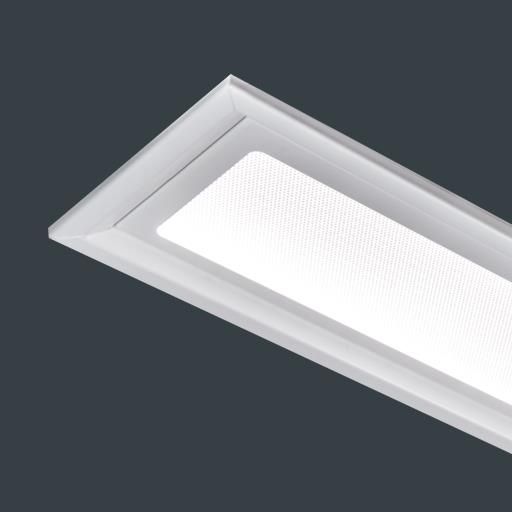

Radiance Corridor LED - 24W - 4000K

RC18820

Thorlux Lighting

Narrow body recessed luminaire for use in hospital corridors. The edge-lit panel combined with carefully controlled optical distribution provide a low-glare asymmetric distribution to evenly illuminate hospital corridors from an off-centre position. The Radiance Corridor is specifically designed to provide a ‘visual comfort zone’ and helps provide compliance with CIBSE 2008 Hospital Lighting Guide (LG2). Applications: Healthcare corridors

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24 W 2980 lm 110 lm/W 4000 K 80
Radiance Corridor LED - 24W - 4000K

Radiance Corridor LED - 24W - 4000K

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1195 mm

Width: 142 mm

Height: 55 mm

Adjustability

Fixed

Electric

System power: 27 W

Protection

IP: 40

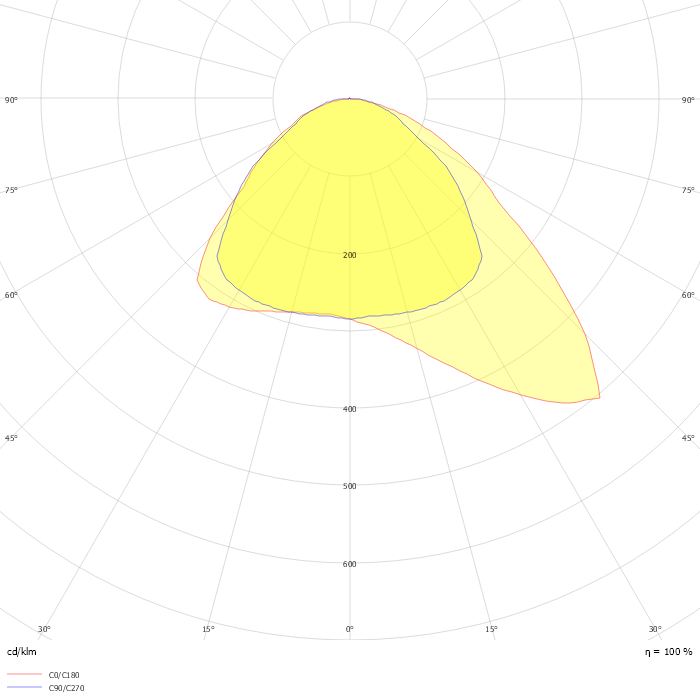

Photometric data

ZIP file
