Product data sheet
Tubs Modular Rectangular Horizontal
00-A141-05-M1
LedsC4

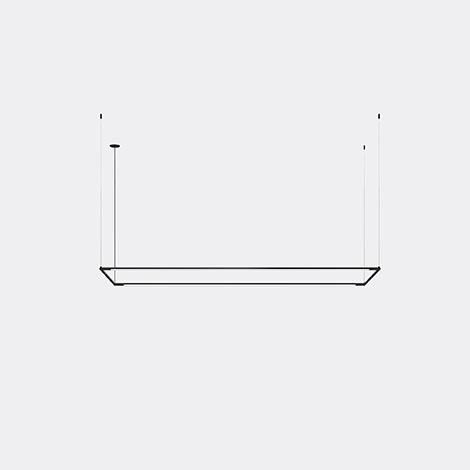

LedsC4 Tubs Modular Rectangular Horizontal 00-A141-05-M1 Pendant for indoor use. For downlighting. The optical module can easily be rotated 360º. Structure material: Aluminium. Structure finish: Black. Diffuser material: Methacrylate. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 2.76 Product length (mm): 1620 Product width or diameter (mm): 730 Product height (mm): 2500 Ø of the hole for recessing (mm): 18 Permitted ceiling thickness: 10-50 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEANWELL. Maximum power of light source: 61.4W. Colour temperature: 2700K. Colour rendering index: 92. MacAdam Steps: 3. Hours of life: 50.000h L80B20. Photobiological risk: RG0. Real flux (lm): 5593. Real lm/W: 82. Voltage / frequency range: 100-305V/50-60Hz. Voltage: 2.75. Equipment included: Yes. Total power: 67.9. Power factor: NULL. Dimmable equipment included: ON-OFF.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9.3 W | 799 lm | 86 lm/W | 2700 K | 90 |
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9.3 W | 799 lm | 86 lm/W | 2700 K | 90 |
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9.3 W | 799 lm | 86 lm/W | 2700 K | 90 |
Mounting mode
Pendant, Table luminaire
Shape and measurements
Length: 729 mm
Width: 1619 mm
Height: 16 mm
Adjustability
Fixed
Electric
System power: 37.2 W
Appliance Class: I
Protection
IP: 20

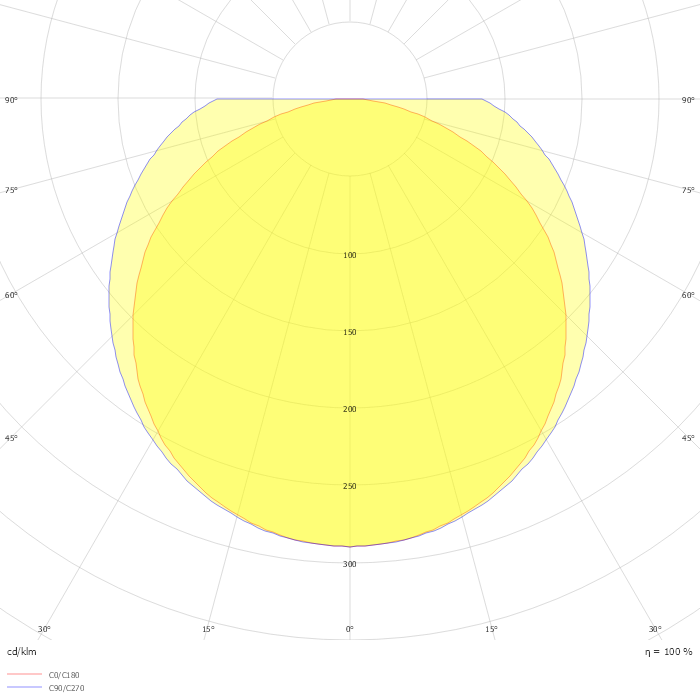

Photometric data
ZIP file
