Product data sheet

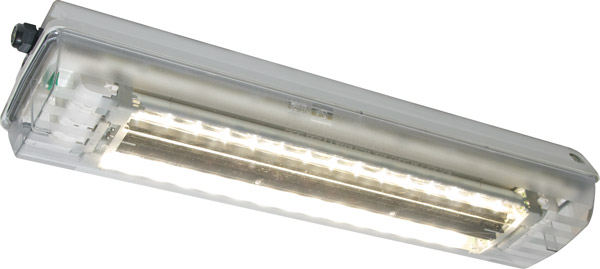

ELLK92 LED 400A 2/6 M20M V-CG-S 5700K
12265516111
Eaton Emergency Lighting
• >20 % energy savings compared to similar fluorescent luminaires • Special LED design with direct light distribution • Proved technology. The EVG 09 has been used as a driver for more than 20 years • Various light colour temperatures available - 4000 K / 5700 K • Selected LED chips with perfect binning, low power loss and long life • Ex-e technology for easy maintenance • For ambient temperatures from -25 °C up to +55 °C
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 29 W | 1350 lm | 47 lm/W | 5700 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 760 mm
Width: 188 mm
Height: 130 mm
Adjustability
Fixed
Electric
System power: 58 W
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 66

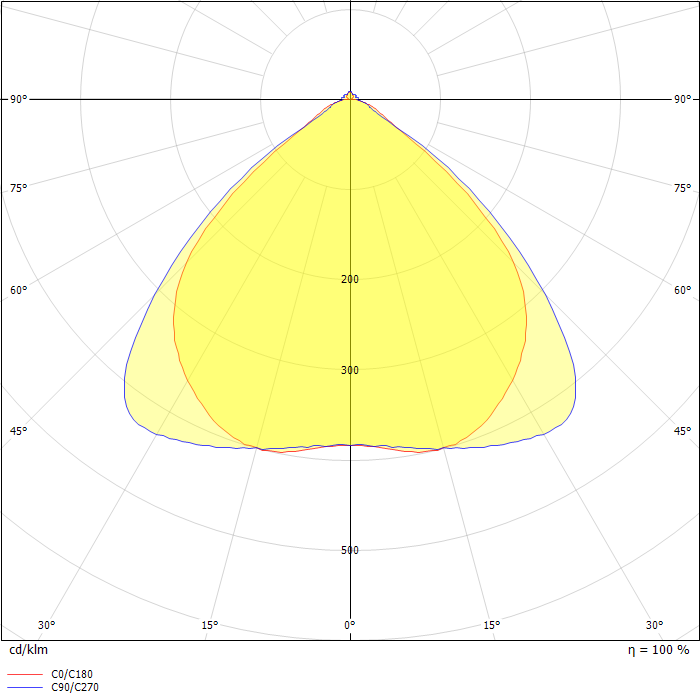

Photometric data
ZIP file
