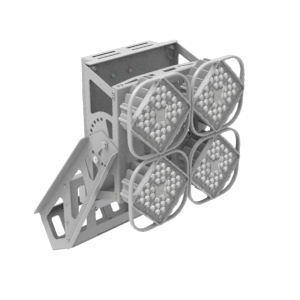

High-power floodlight with a wide range of wattage and optics. Best lumens/mass/size ratio in its class of solutions. Material: Cast aluminum radiator, steel body parts, acrylic optic.LEDs with a high color rendering index, for objects with hight requirements for television broadcasting. Installation: Surface-mounted using an adjustable bracket. The mounting bracket has an angle of inclination 30° to the horizontal for comfortable aiming of the spotlight.Angle of rotation: 30° to 165° in 5° increment. Application: Outdoor areas. Industrial facilities. Sports lighting. Ingress protection (IP): IP67 Protection class: I Impact resistance: IK01 Power factor: 0,95 Input voltage (AC, 50Hz), V: 90...305 AC frequency, Hz: 50 Input voltage (DC), V: 127...250 Flicker, %: 1 Climatic modification and category of placement: УХЛ1 https://www.varton.ru/products/sportivnoe-osveshchenie/airqub-sport-tv/airqub-sport-tv-280-vt/svetodiodnyy-prozhektor-varton-airqub-sport-tv-280-vt-4000-k-90/
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 280 W | 31000 lm | 111 lm/W | 4000 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 524 mm
Width: 336 mm
Height: 387 mm
Adjustability
Fixed
Electric
System power: 280 W
Protection
IP: 67
IK: 01

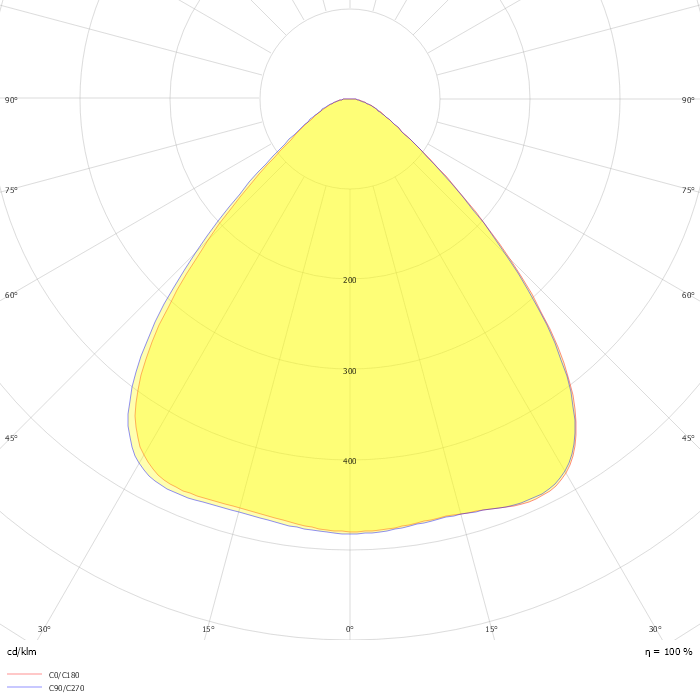

Photometric data
ZIP file
