Product data sheet

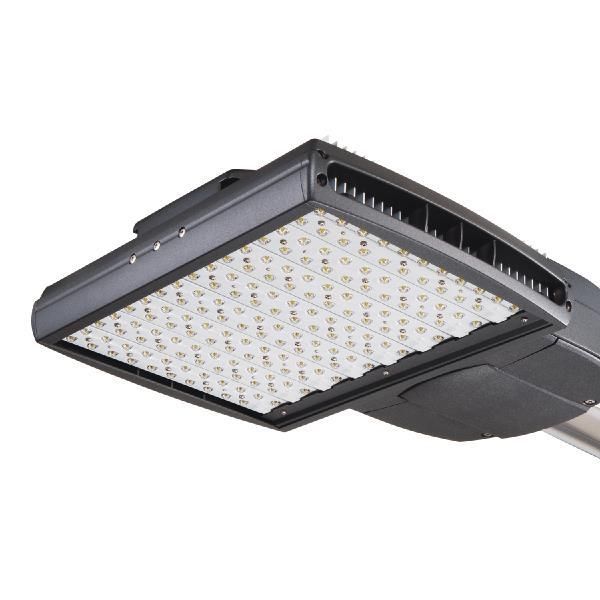

VST Ventus LED

VST-F03-LED-E-U-SL2-7060

Cooper Lighting

Choice of 12 high efficiency, patent pending AccuLED Optics™, Offered standard in 4000K (+/- 275K) CCT and nominal 70 CRI, Suitable for operation in -40°C to 40°C ambient environments, 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, Proprietary circuit module withstands 10kV of transient line surge, Pole, mast arm or wall-mounted configurations, Construction allows for passive cooling and natural cleaning, Cast-in leveling guides provide +/-5° vertical leveling adjustment, Features a 5-year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 78.3 W 7646 lm 98 lm/W 5700 K 70
VST Ventus LED

VST Ventus LED

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 101 mm

Width: 305 mm

Height: 10 mm

Adjustability

Fixed

Electric

System power: 78.3 W

Protection

IP: 47

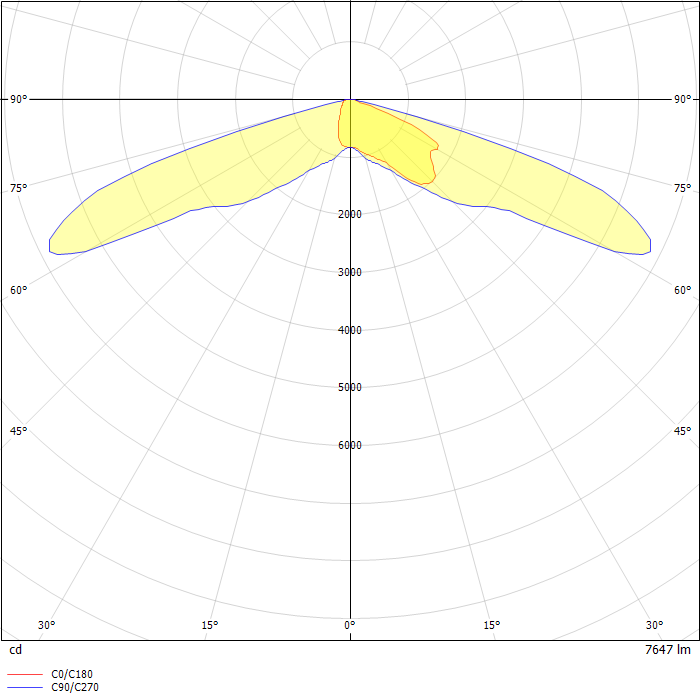

Photometric data

ZIP file
