Light source LED 9400 - 12000 lumen out Colour temperature 4000 K, CRI Ra 80, MacAdams 3 Mounting On 6 to 12 m pole with top diameter of 50-60 mm. Adjustable tilt from -10º to + 10º. Optics Wide beam optic for street and pathway lighting (WBA) and medium beam asymmetrical optics (MBA).
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 75 W | 9400 lm | 125 lm/W | 4000 K | 70 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 639 mm
Width: 275 mm
Height: 130 mm
Adjustability
Fixed
Electric
System power: 75 W
Protection
IP: 66
IK: 08

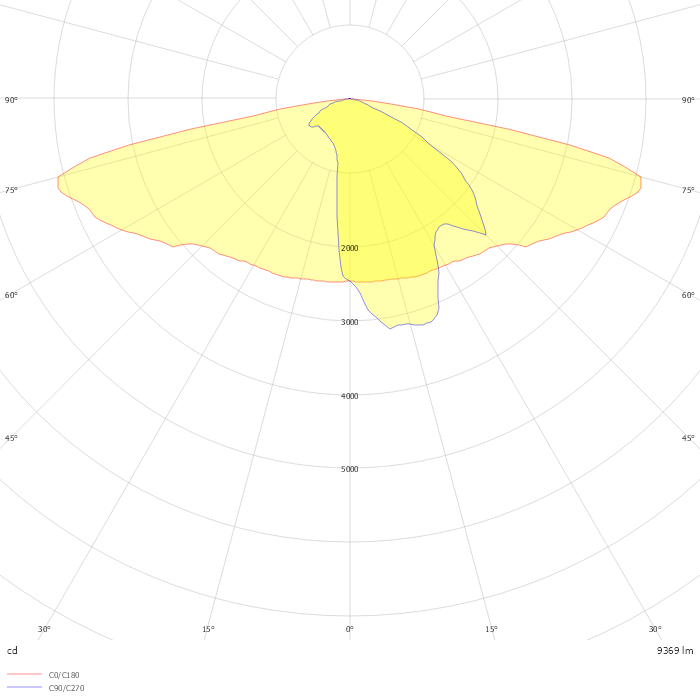

Photometric data
ZIP file
