Product data sheet

MIRAGE 3 MRI

WIDE SEMI-SPEC

Whitecroft

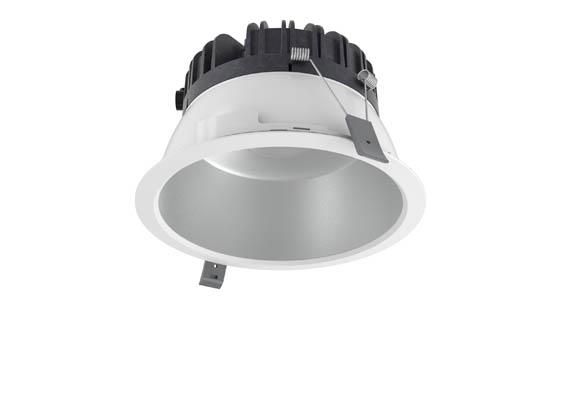

See lamps to select output and colur variants MIRAGE 3 recessed downlighter semi specular reflector, wide distribution. Narrow 11mm width bezel and shallow depth body. Graphite heat sink for optimum thermal management and superior optics designed for maximum visual comfort. Simple spring ceiling retention method to suit ceiling thicknesses between 5-30mm. Supplied with connected remote driver. Large Round body, 165mm diameter cut out, 173mm over bezel. MRI version for specialist applications such as Healthcare MRI Rooms requiring no ferrous metals or internal electronics. Specialist driver to be ordered seperately. Emergency Output:- ‘Emergency lighting to utilise remote central battery’

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 25 W 2652 lm 105 lm/W 4000 K 90
1 x LED 25 W 2520 lm 100 lm/W 3000 K 90
1 x LED 16 W 1796 lm 112 lm/W 4000 K 90
1 x LED 16 W 1712 lm 106 lm/W 3000 K 90
MIRAGE 3 MRI

MIRAGE 3 MRI

Light output 1

1 x LED

MIRAGE 3 MRI

MIRAGE 3 MRI

Light output 1

1 x LED

MIRAGE 3 MRI

MIRAGE 3 MRI

Light output 1

1 x LED

MIRAGE 3 MRI

MIRAGE 3 MRI

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 100 mm

Diameter: 170 mm

Adjustability

Fixed

Electric

System power: 16.1-25.3 W

Protection

IP: 44

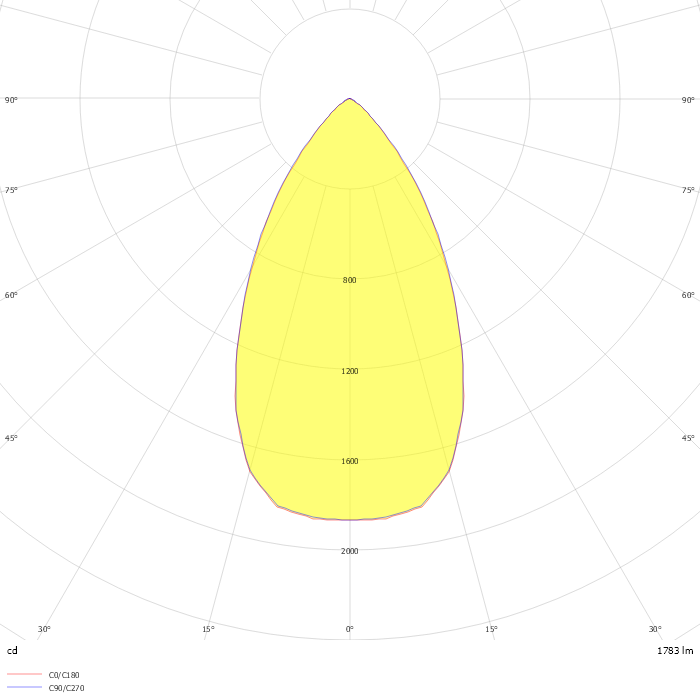

Photometric data

ZIP file
