Product data sheet

MINIGRID ON 250 93033 DIM8

100045 9328

Delta Light

Product image 1: MINIGRID ON 250 93033 DIM8
Product image 1: MINIGRID ON 250 93033 DIM8

Product image 1: MINIGRID ON 250 93033 DIM8



IP
20

Luminaire, ceiling surface mounted (indoor use) from Deltalight, named MINIGRID ON 250 93033 DIM8, available in the colour(s): black-black, black-white, white-black, white-white. This luminaire is equipped with 2 x (LED array 8,6W / CRI>90 (R9: 52) / 3000K / 1089lm) with build-in dimmable driver to operate on a voltage of 220-240V / 50-60Hz. Dimming protocol: mains (phase cut-off). Light distributor: reflector 33°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 9 W 1089 lm 121 lm/W 3000 K 90
MINIGRID ON 250 93033 DIM8

MINIGRID ON 250 93033 DIM8

Light output 1

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 9 W 1089 lm 121 lm/W 3000 K 90
MINIGRID ON 250 93033 DIM8

MINIGRID ON 250 93033 DIM8

Light output 2

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 105 mm

Width: 205 mm

Height: 100 mm

Electric

System power: 24 W

Appliance Class: I

Protection

IP: 20

Designation labels: CE

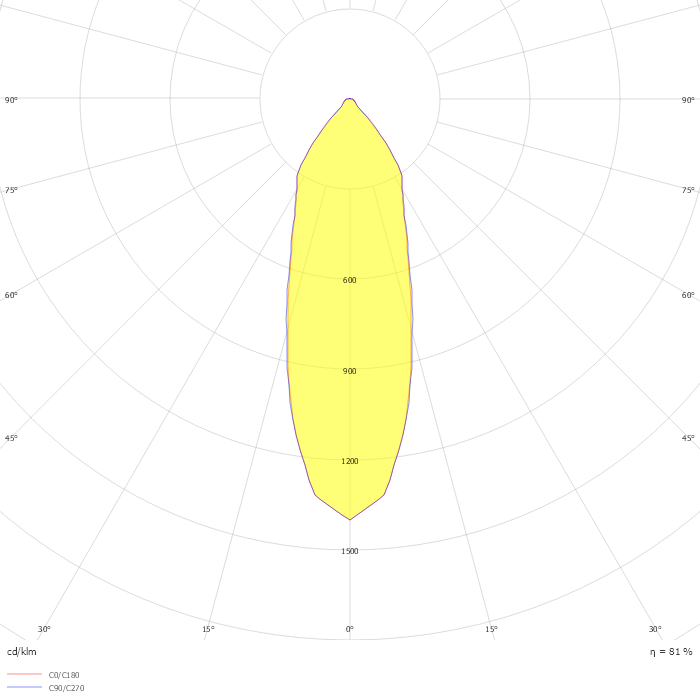

Photometric data

ZIP file

Download file
