Product data sheet

LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP

541003056010

Opple

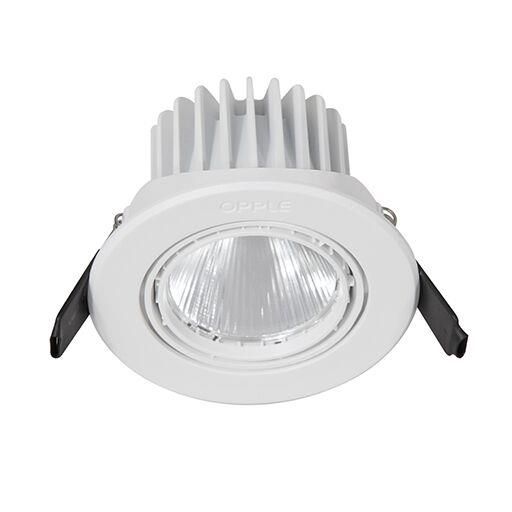

Product image 1: LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP
Product image 1: LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP

Product image 1: LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP



IP
20

Housing: Aluminium Alloy; Mounting ring: white Installation: recessed; Dimensions: 62*Φ86; Ceiling cutouts: φ70; Power: 9W; Efficacy：67Lm/w Colour temperature: 4000K; Colour rendering: RA80 Total luminous flux of luminaire: 600Lm Beam angle: 24°; Glare control: UGR<19; Service life: 30,000h at 70% luminous flux; Degree of protection: IP20; Class of protection II; Mains voltage: 220-240V/50-60Hz; Remark：Accessory Lens provide: honeycomb HQII-GP, filter-blue-light HQII-GP, filter- red-light HQII-GP, filter-ylw-light HQII- GP, lens-ellipse HQII-GP

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 9 W 600 lm 67 lm/W 4000 K 80
LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP

LEDSPOTRA-HQII 9W-DIM-4000-24D-WH-GP

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 86 mm

Width: 86 mm

Height: 62 mm

Adjustability

Free

Electric

System power: 9 W

Protection

IP: 20

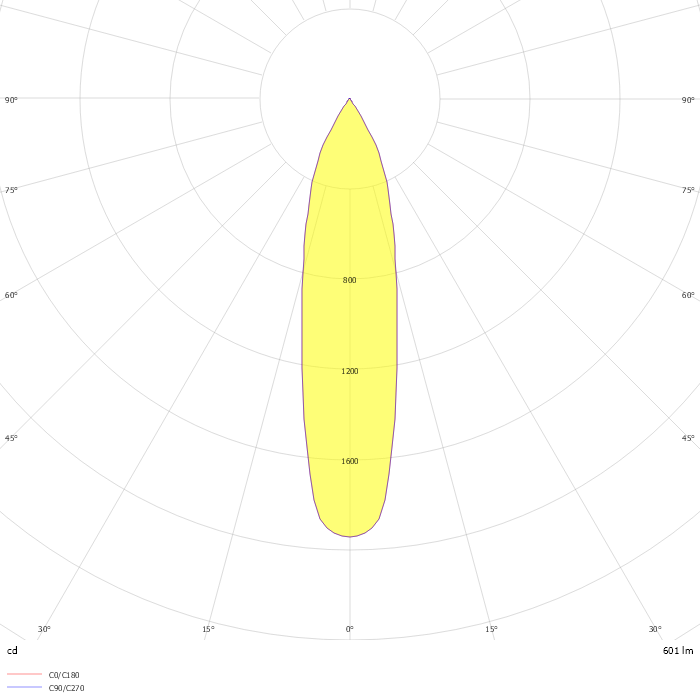

Photometric data

ZIP file

Download file
