Product data sheet

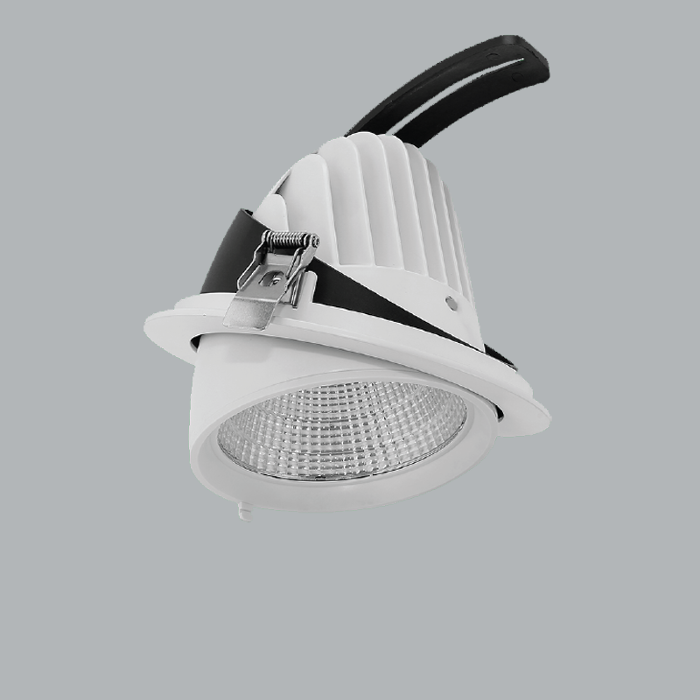

LED Downlight Adjustabe 20W 4000K

DLA-20N

MPE

- Recessed – mounted on ceiling - Alloy alluminum body and cooling wings in body used electro static power coating technology to diffuse heat better - Rotating light can adjust the light direction - Detachable driver for easy connection - Size: Ø125 x 100 mm - Cut out: Ø 112mm - Voltage: 175-265VAC - Power: 20W - Power Factor (PF): >0.9 - Luminance: 1740 lm - Color Temperature (CCT): 4000-4500K - RA >80 High Color Rendering Index - Beam angle: 21⁰ - Chip LED: COB ( Chip on Board) - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 19 W 1740 lm 87 lm/W 4000 K 82
LED Downlight Adjustabe 20W 4000K

LED Downlight Adjustabe 20W 4000K

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 128 mm

Width: 192 mm

Height: 102 mm

Adjustability

Free

Electric

System power: 20 W

Protection

IP: 20

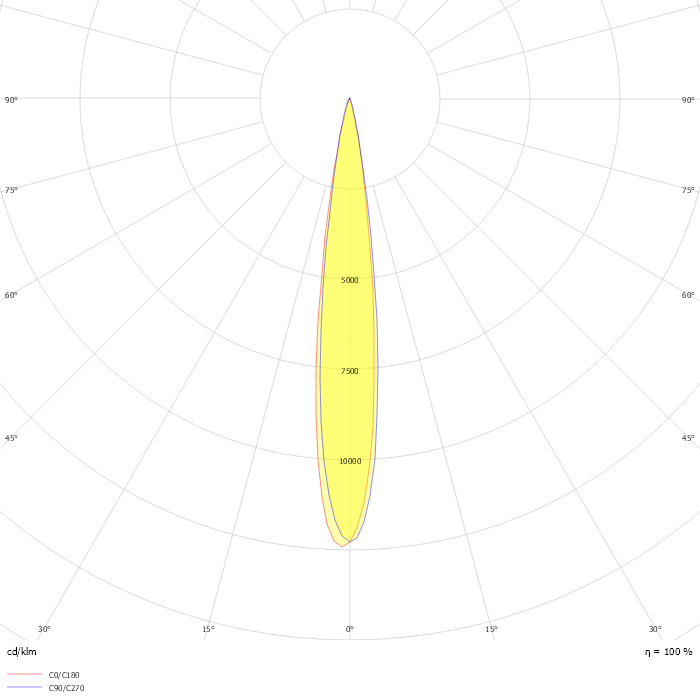

Photometric data

ZIP file
