Product data sheet

VOYAGER ESCAPE E3NM MRE

96642782

Thorn Lighting

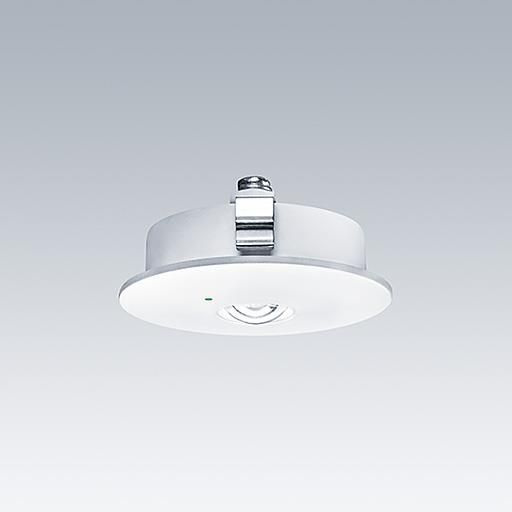

Product image 1: VOYAGER ESCAPE E3NM MRE
Product image 1: VOYAGER ESCAPE E3NM MRE

Product image 1: VOYAGER ESCAPE E3NM MRE



IP
20

Small ceiling recessed LED emergency luminaire with 3 hour, non-maintained, manual test emergency lighting circuit. Body: white aluminium alloy. Clips: stainless steel. Class II electrical, IP20. Suitable for escape routes and open areas. Dimensions: Ø37 x 15 mm Total power: 3 W Total luminous flux: 110 lm Weight: 0.31 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3 W 110 lm 37 lm/W 3000 K 80
VOYAGER ESCAPE E3NM MRE

VOYAGER ESCAPE E3NM MRE

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 15 mm

Diameter: 37 mm

Weight: 0.31 kg

Design

Material impression: Aluminum

Colour of housing: White

Electric

System power: 3 W

Voltage: 220-240 V AC

Appliance Class: II

Protection

IP: 20

Designation labels: CE

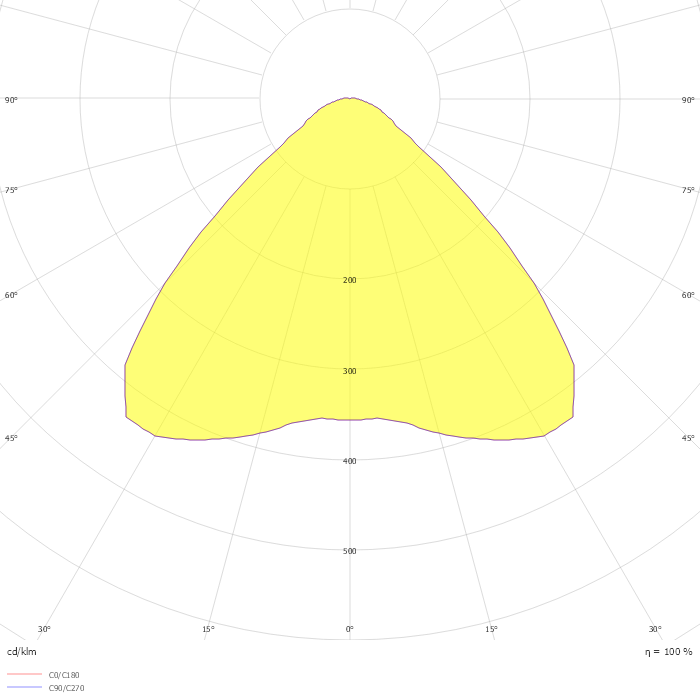

Photometric data

ZIP file

Download file
