Product data sheet

Curve floor glass (white)

16000121-30

Zero

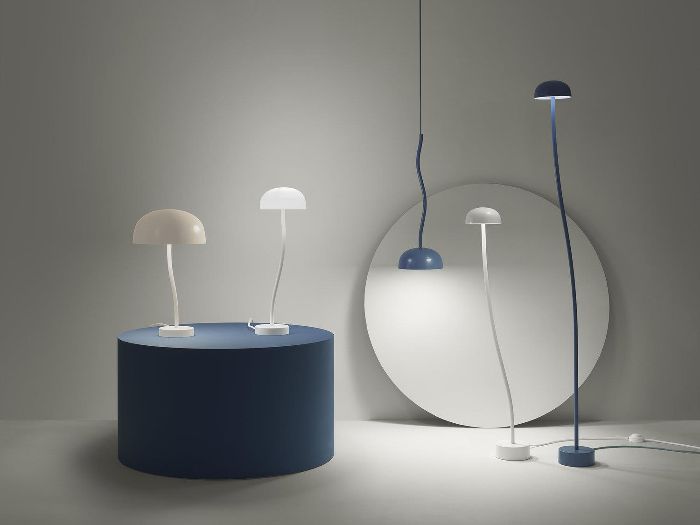

Product image 1: Curve floor glass (white)
Product image 1: Curve floor glass (white)

Product image 1: Curve floor glass (white)



IP
20

Finish Painted metal green RAL 6017, white RAL 6017, pigeon blue RAL 5014, ivory RAL 1015. Green och white available with glass shade. Other colours and combination on request. Diffuser in matt acrlylic. Incorporated LED module. Can be dimmed with trailing edge dimmer. LED info System power 8W. Luminaire luminous flux see product specification. CCT 3000K. SDCM 3. CRI >80. L70 B10 50.000h. Installation On floor. Connection 2,5 m cable with switch and plug. Design Front Design 2019.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8 W 465 lm 58 lm/W 3114 K 80
Curve floor glass (white)

Curve floor glass (white)

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard, Floor mounted

Shape and measurements

Length: 284 mm

Width: 150 mm

Height: 1065 mm

Adjustability

Fixed

Electric

System power: 8 W

Protection

IP: 20

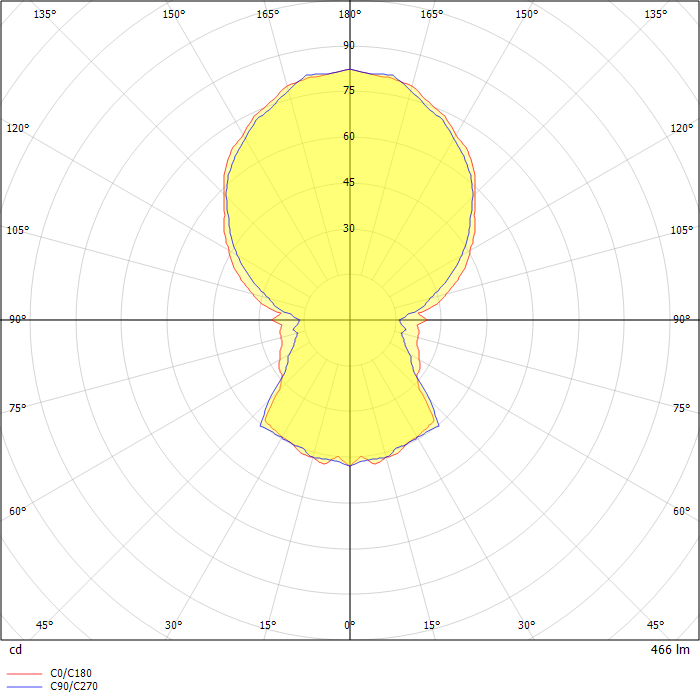

Photometric data

ZIP file

Download file
