Product data sheet
SPL14 - SPY 39 92740 MDL
27315 9230
Delta Light

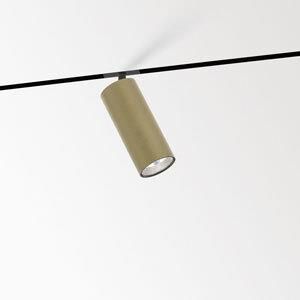

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named SPL14 - SPY 39 92740 MDL, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. This luminaire can be used with the following 48V lighting system(s): D-LINER 19 SL PROFILE SET, SPLITLINE 14 - PROFILE. This luminaire is equipped with LED array 8,6W / CRI>90 (R9: 60) / 2700K / 1041lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: MDL = 1-10V or DALI or push button. Light distributor: reflector 40°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 1041 lm | 116 lm/W | 2700 K | 90 |
Mounting mode
Ceiling recessed, Contact rail, Wall recessed
Shape and measurements
Length: 7 mm
Width: 160 mm
Height: 1 mm
Electric
System power: 20 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

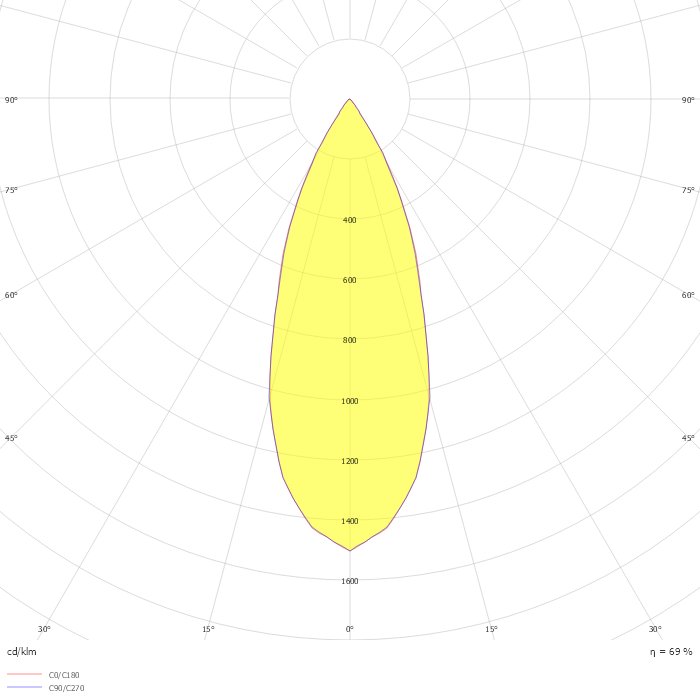

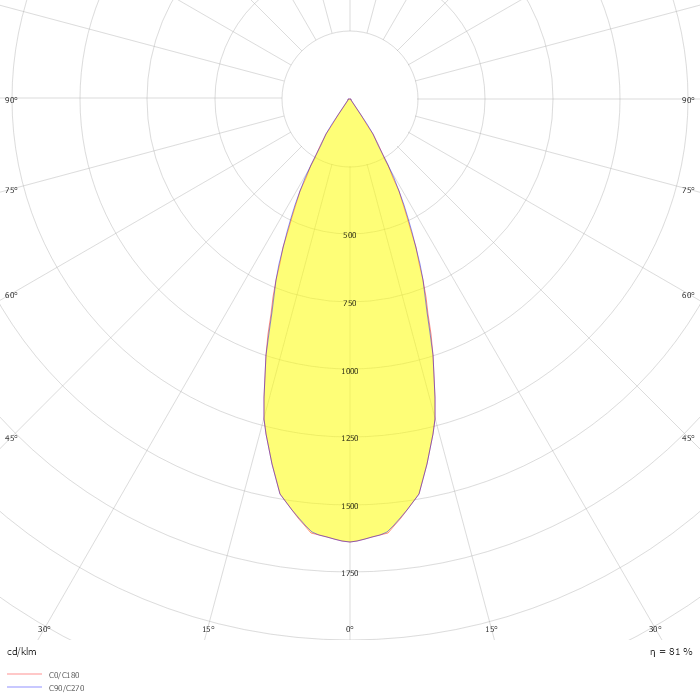

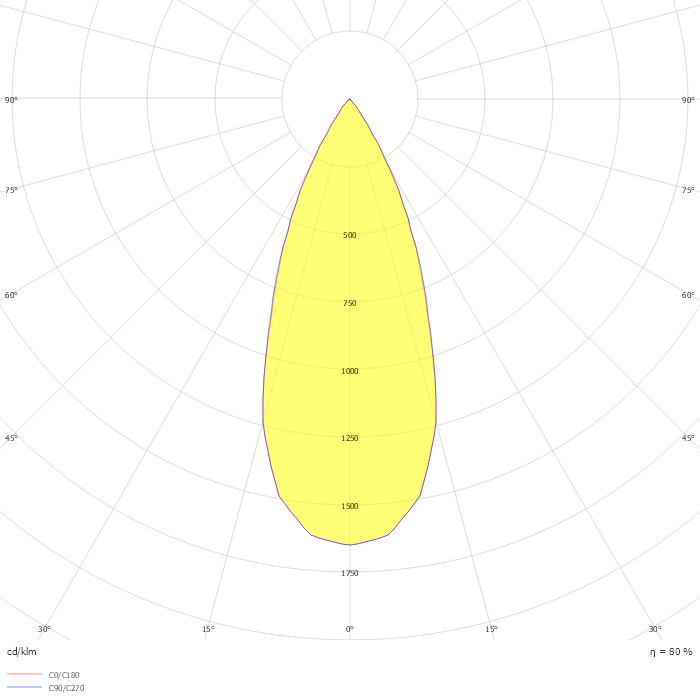

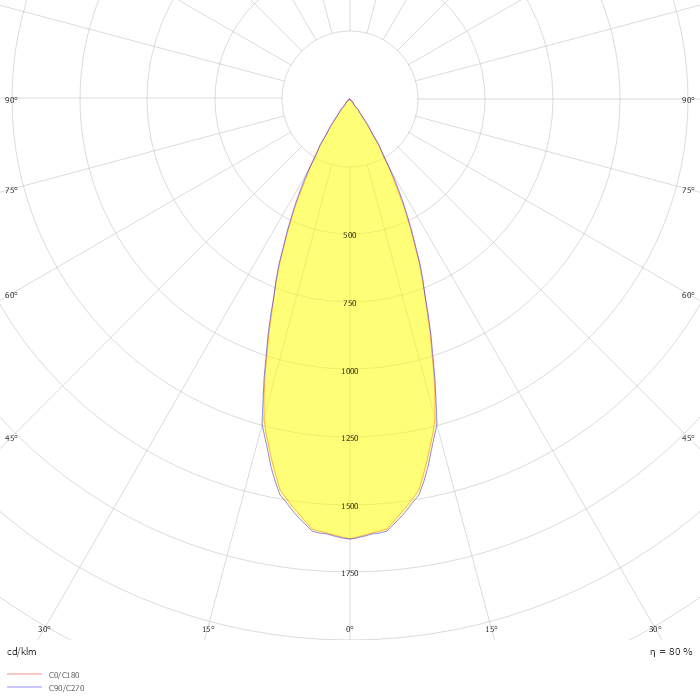

Photometric data
ZIP file
