Product data sheet

Callisto White 200lm 2700K Ra>80 Trailing edge dimming

7021989120124

SG Armaturen

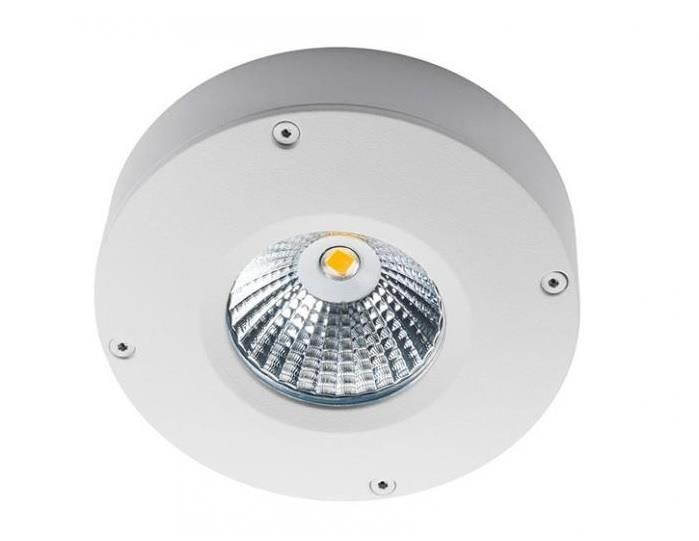

Product image 1: Callisto White 200lm 2700K Ra>80 Trailing edge dimming
Product image 1: Callisto White 200lm 2700K Ra>80 Trailing edge dimming

Product image 1: Callisto White 200lm 2700K Ra>80 Trailing edge dimming



IP
65

IK
06

Good little LED luminaire for walls and ceiling. For both outdoor and indoor use. Well integrated LED chip, dimmable via phase-dimming. Made of die-cast powder-coated aluminium, powder coating and 10-year corrosion warranty, glass diffuser. 33 cm in total height, KL II means that it can be mounted without earthing, direct 230 V with loopable quick clips. Light distribution Direct Light technic LED (not exchangeable) 3W 2700K Ra>80 SDCM 3 L70/B50 >50,000 hrs Control/Dimming Trailing edge dimming Protection Class II IP65 IK06 Energy and approvals CE Materials and finish Housing: Aluminium Colour: Matte white (RAL 9003) Optics: Glass Mounting/Connection Surface, Indoor / Outdoor Screwless terminal block Max. luminaires per circuit breaker: B10: 115, B16: 184, C10: 134, C16: 215

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3 W 200 lm 67 lm/W 2700 K 80
Callisto White 200lm 2700K Ra>80 Trailing edge dimming

Callisto White 200lm 2700K Ra>80 Trailing edge dimming

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 110 mm

Width: 110 mm

Height: 27 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 3 W

Appliance Class: II

Protection

IP: 65

IK: 06

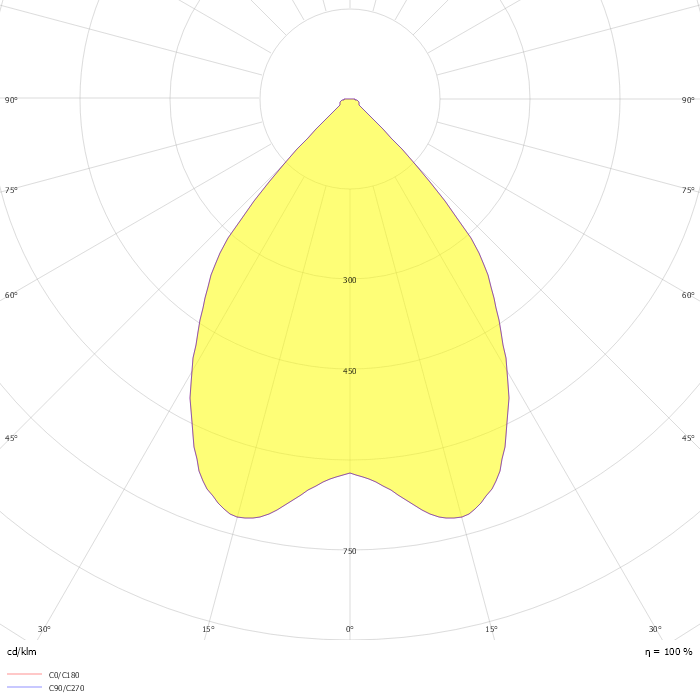

Photometric data

ZIP file
