Product data sheet

SLOIN A SL LED3000-830 L2274 PCO

42184233

Zumtobel

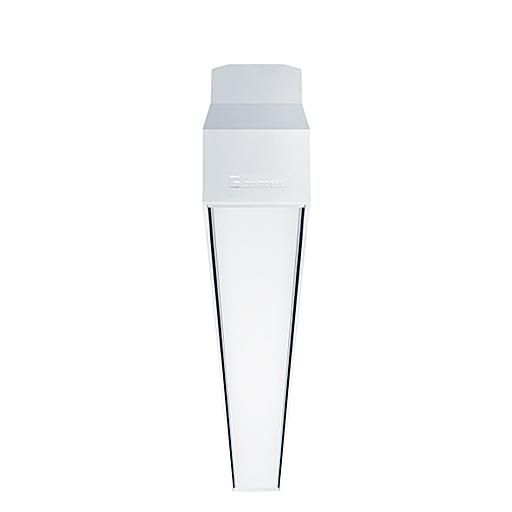

LED light line with DALI-controllable LED converter; LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 3050 lm, Luminaire efficacy: 83 lm/W. Colour rendering Ra > 80, colour temperature 3000 K. PC cover with anti-glare film for standard-compliant workstation illumination with UGR<19 and L65<3000 cd/m² (EN: 12464:2011). Luminaire of aluminium, silver powder coated. Luminaire with completely uniform appearance due to polycarbonate cover. Luminaire consists of housing and continuous optic of polycarbonate. Includes gear tray, wiring, and end-cap set. Luminaire wired with halogen-free leads and covers are due to norm classified as TP(a). Degree of protection: IP40 below (IP20 above). Dimensions: 2274 x 76 x 98 mm weight: 9.5 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 36.7 W 3050 lm 83 lm/W 3000 K 80
SLOIN A SL LED3000-830 L2274 PCO

SLOIN A SL LED3000-830 L2274 PCO

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 2274 mm

Width: 76 mm

Height: 98 mm

Weight: 9.5 kg

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 36.7 W

Voltage: 220-240 V AC

Controller: DALI

Appliance Class: I

Protection

IP: 40

IK: 07

Designation labels: CE, ENEC

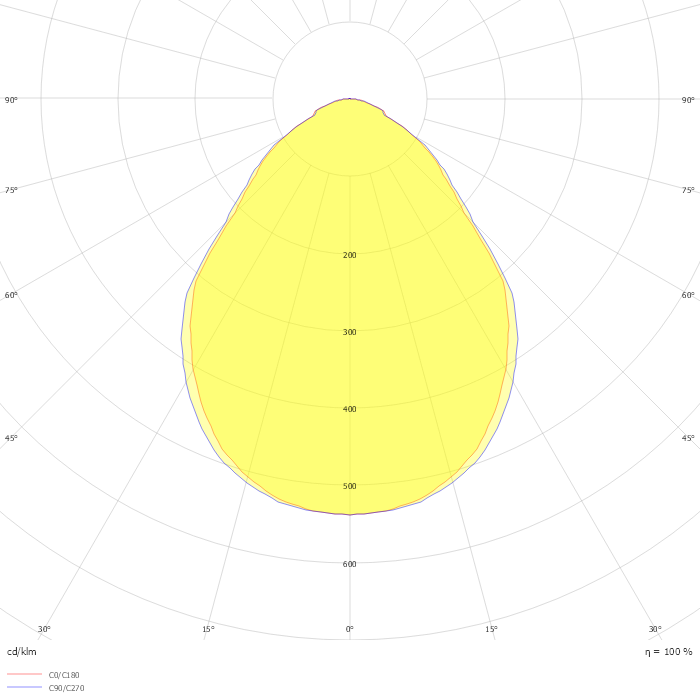

Photometric data

ZIP file
