Product data sheet

CARREE X LED 92733-65 S1

202 206 811 922

Delta Light

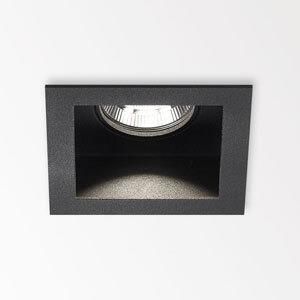

Product image 1: CARREE X LED 92733-65 S1
Product image 1: CARREE X LED 92733-65 S1

Product image 1: CARREE X LED 92733-65 S1



IP
65

IK
03

Luminaire, ceiling recessed (indoor and outdoor use) from Deltalight, named CARREE X LED 92733-65 S1, available in the colour(s): alu grey, anthracite (dark grey), white. This luminaire is equipped with LED array 5,8W / CRI>90 (R9: 60) / 2700K / 753lm with an optional driver, suitable for currents of 350mA. Light distributor: reflector 33°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 6 W 753 lm 126 lm/W 2700 K 90
1 x LED 6 W 753 lm 126 lm/W 2700 K 90
1 x LED 6 W 753 lm 126 lm/W 2700 K 90
CARREE X LED 92733-65 S1

CARREE X LED 92733-65 S1

Light output 1

1 x LED

CARREE X LED 92733-65 S1

CARREE X LED 92733-65 S1

Light output 1

1 x LED

CARREE X LED 92733-65 S1

CARREE X LED 92733-65 S1

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 90 mm

Width: 90 mm

Height: 1 mm

Weight: 0.4 kg

Electric

System power: 6 W

Appliance Class: II

Protection

IP: 65

IK: 03

Designation labels: CE

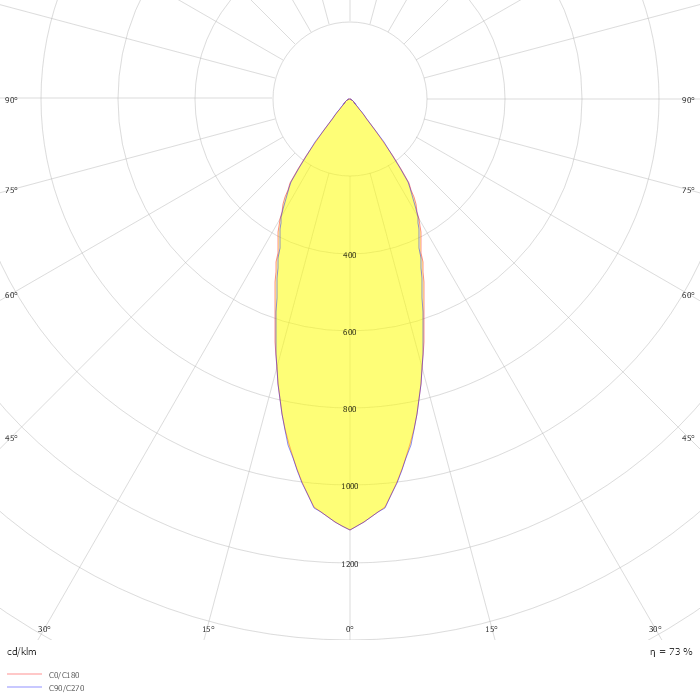

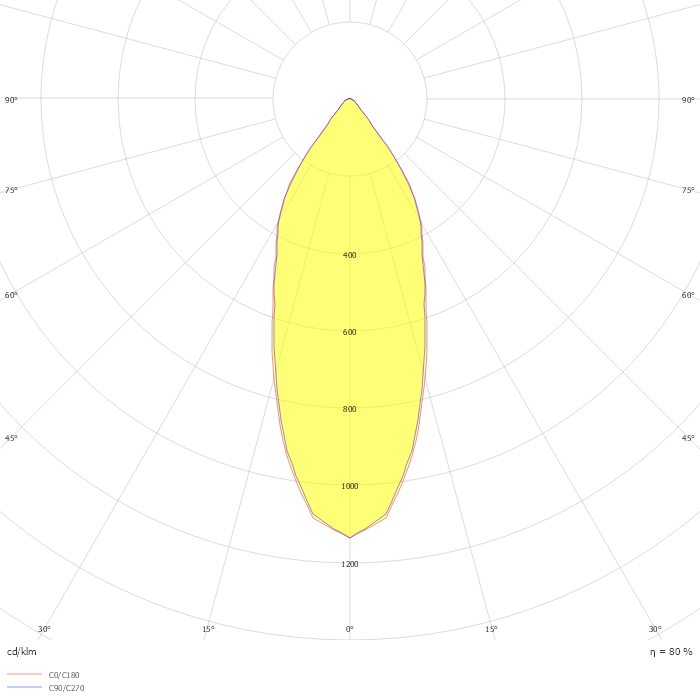

Photometric data

ZIP file

Download file
