Product data sheet

Cubic Evolution Suspended - R4

CR4LEE-830M-L925-YB

Lightnet

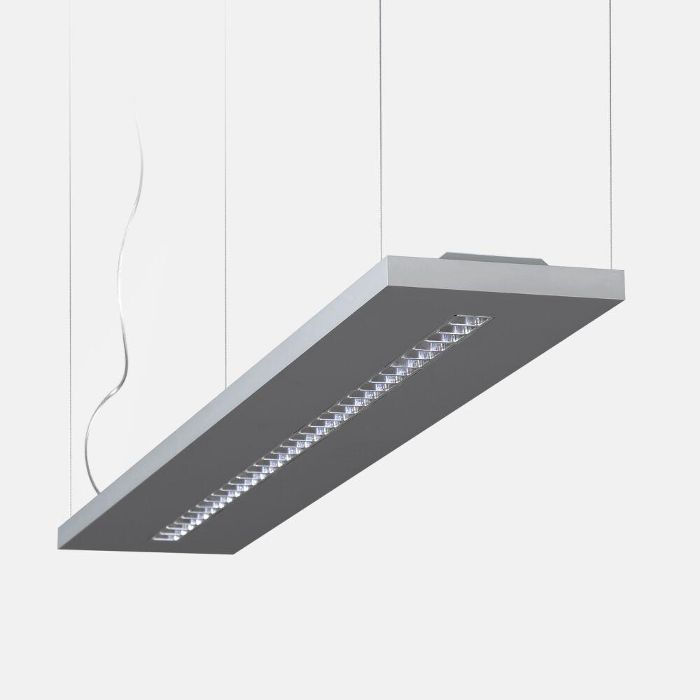

LED pendant luminaire. Direct-indirect light distribution. Luminaire body with minimalistic overall height made of aluminium profile. Surface natural anodised or white, graphite, black or champagne coated as well as polished aluminium. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct part using precision lenses with louvre for wide rotationally symmetrical light distribution with high glare limitation (UGR<16). Louvre available in various colour combinations. Indirect light with innovative lens technology for wide-angle ceiling illumination. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim). Colour temperature 2700K, 3000K, 3500K or 4000K. Binning initial ≤ Mac Adam 3. Colour rendering CRI>80 or CRI>90. Height adjustable Y-cord suspension or parallel-cord suspension with transparent power supply cable, colour of ceiling rose matching luminaire body. On request: Soft-touch black or red sheathed supply line.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 41 W 4965 lm 121 lm/W 3000 K 82
Cubic Evolution Suspended - R4

Cubic Evolution Suspended - R4

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 925 mm

Width: 200 mm

Height: 25 mm

Adjustability

Height adjustable

Electric

System power: 41 W

Protection

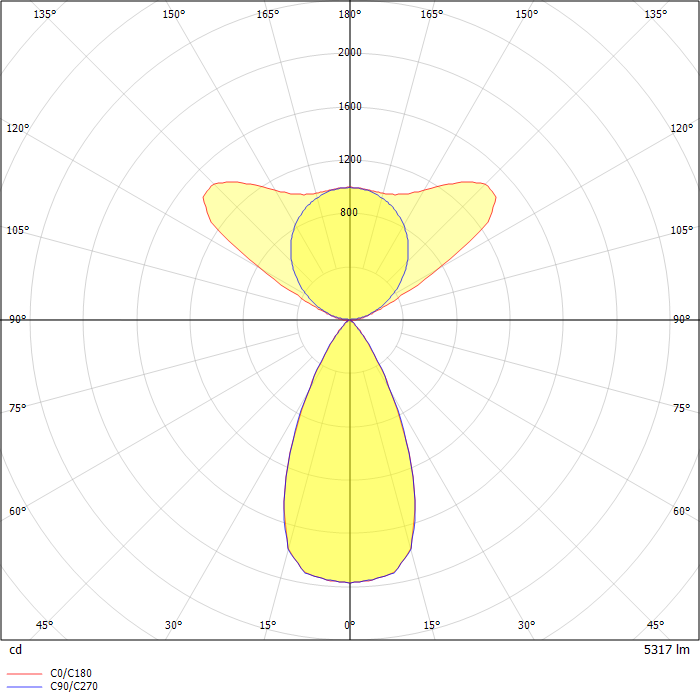

Photometric data

ZIP file
