Product data sheet

KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K

19.3161.0124.22

LUXIONA

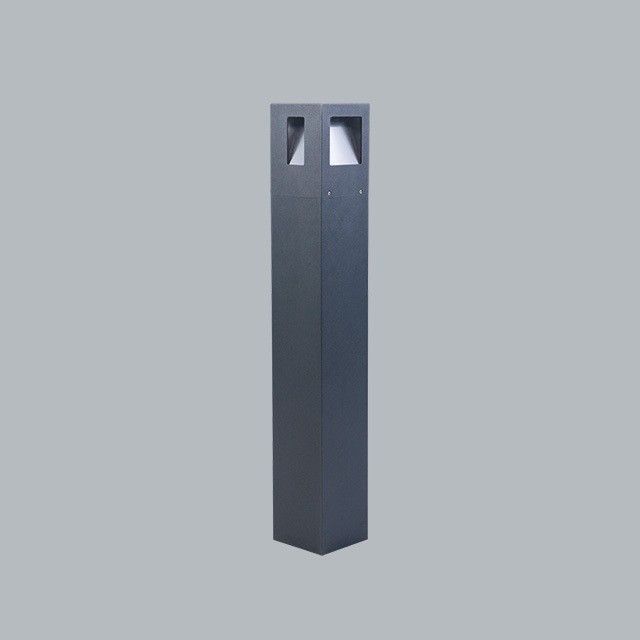

Product image 1: KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K
Product image 1: KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K

Product image 1: KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K



IP
65

IK
09

Outdoor luminaire. Assembly: for the ground. The body material is aluminum. Colour - RAL 9007 (dark grey, metallic, fine structure). Dimensions: 150 x 150 x 4000 mm. Diffuser: transparent polycarbonate. The efficiency of the optical system is 84,46%. Beam angle: asymmetric light distribution. Light source type: LED. Colour of the light 6500 K. CRI>80. Lifetime of LED sources: 50000 h L70/B50. Luminaire luminous flux: 436 lm. Power of luminaire: 7 W. Luminaire's light efficiency: 62,3 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,5. Circuit load capacity: 37 (B10), 59 (B16), 61 (C10), 89 (C16). Operating temperature range: -25 ÷ 30° C. Protection degree: IP65. Impact resistant: IK09. Protection against electric shock: I.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 2.333 W 172 lm 74 lm/W 6500 K 80
KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K

KUBIK POLE 4000 0/3/0/0 LED 1,7W ODB E IP65 22 6500K

Light output 1

3 x LED

Mounting mode

Pole integrated

Shape and measurements

Length: 150 mm

Width: 150 mm

Height: 4000 mm

Adjustability

Fixed

Design

Colour of housing: Anthracite / graphite, Silver gray

Electric

System power: 7 W

Appliance Class: I

Protection

IP: 65

IK: 09

Other operating numbers

Ambient temperature range: -25...30°C

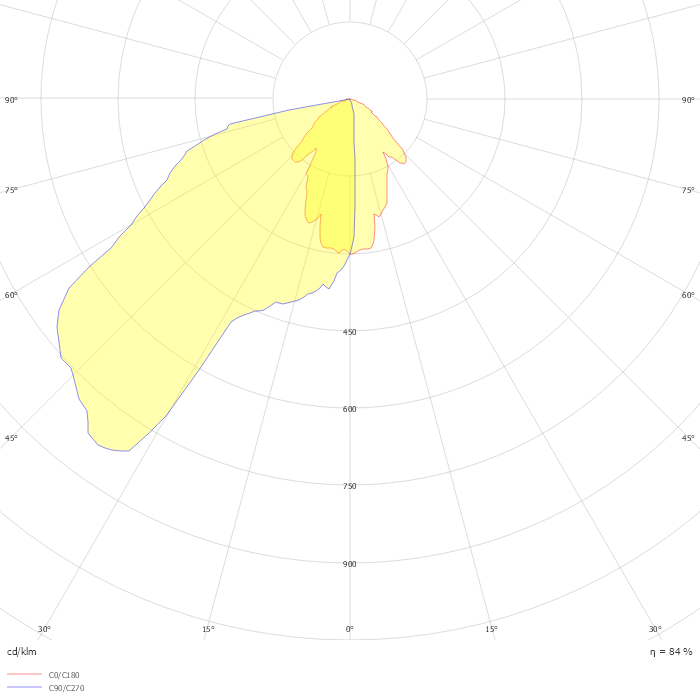

Photometric data

ZIP file

Download file
