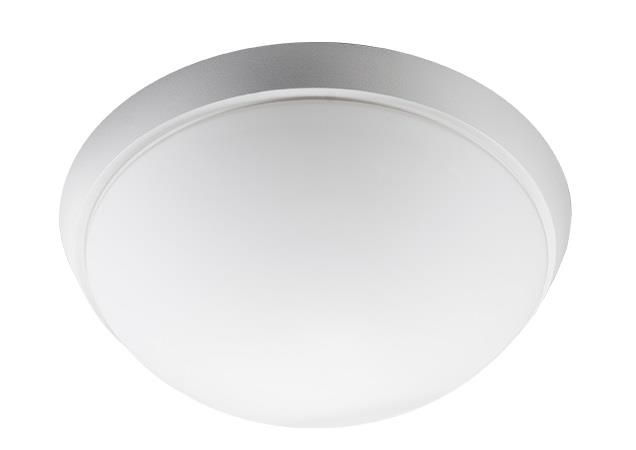

Round LED ceiling lamp with diffuser made of frosted glass. Good solution for entrances and corridors. The whole luminaire has been approved for common access routes. KI II, two cable inputs and the option of additional looping using the integrated quick clips. Can be mounted to either the wall or ceiling with both concealed and visible cabling. Light distribution Direct Light technic LED 10W 3000K Ra>80 SDCM 3 L70/B50 >50,000 hrs Control/Dimming Trailing edge dimming Protection Class II IP44 Materials and finish Housing: Aluminium Colour: White (RAL 9003) Optics: Glass Mounting/Connection Surface, Indoor Screwless terminal block Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 10 W | 650 lm | 65 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 283 mm
Width: 283 mm
Height: 100 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 10 W
Appliance Class: II
Protection
IP: 44

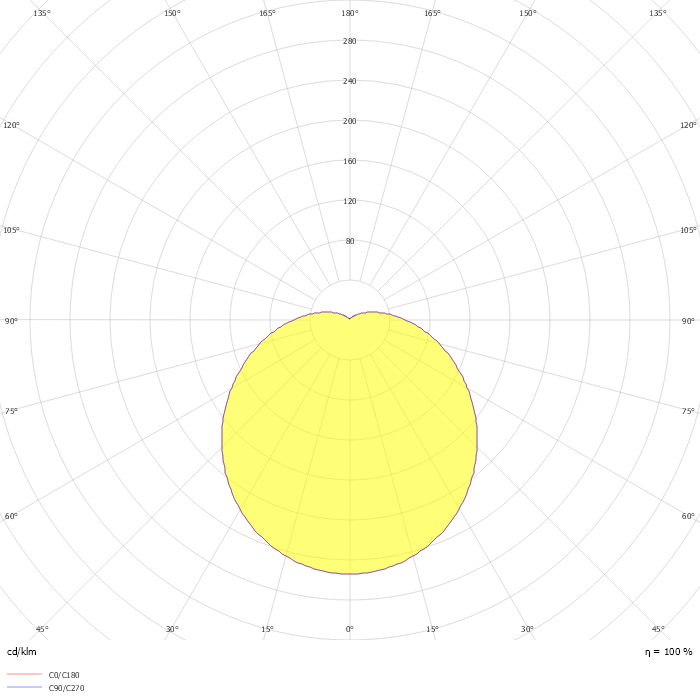

Photometric data
ZIP file
