Product data sheet

PLS420 [R65] IP66:LED-6/12W/3K

131-9569

we-ef

Product image 1: PLS420 [R65] IP66:LED-6/12W/3K
Product image 1: PLS420 [R65] IP66:LED-6/12W/3K

Product image 1: PLS420 [R65] IP66:LED-6/12W/3K



IP
66

IK
08

IP66, Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Safety glass lens. Two cable entries. Integral EC electronic converter. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 1-10V or DALI interface on request.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
6 x LED 2 W 290 lm 83 lm/W 3000 K 80
PLS420 [R65] IP66:LED-6/12W/3K

PLS420 [R65] IP66:LED-6/12W/3K

Light output 1

6 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 265 mm

Width: 70 mm

Height: 225 mm

Weight: 4.2 kg

Electric

System power: 14.5 W

Appliance Class: I

Protection

IP: 66

IK: 08

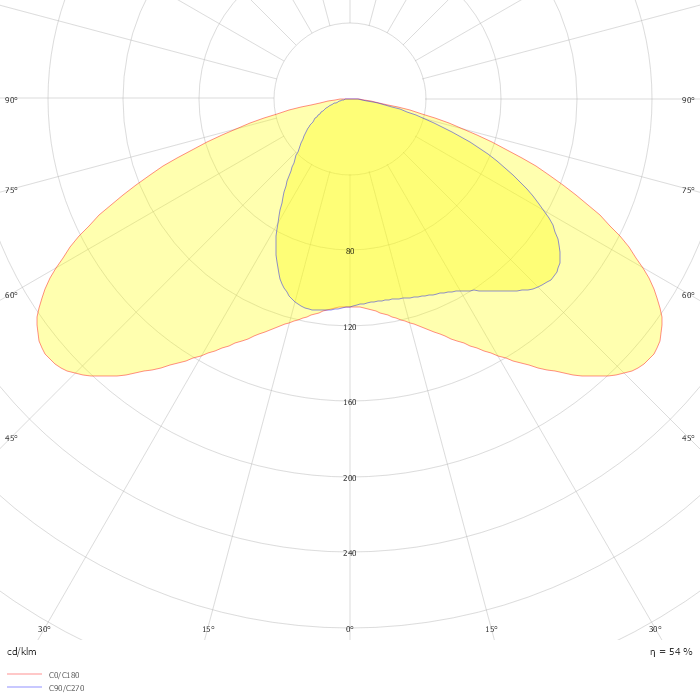

Photometric data

ZIP file

Download file
