Product data sheet

STR 012U 40OD09 1K2 20 V.MN

3178318

EAE

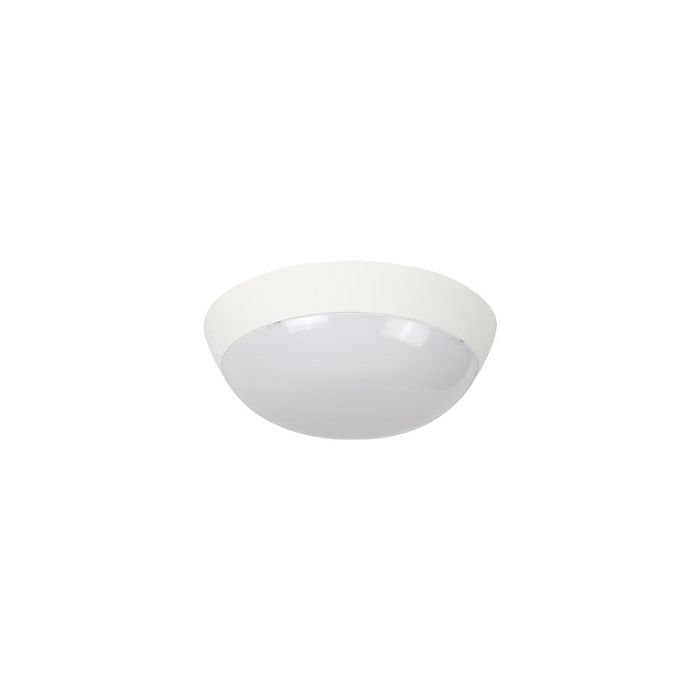

Product image 1: STR 012U 40OD09 1K2 20 V.MN
Product image 1: STR 012U 40OD09 1K2 20 V.MN

Product image 1: STR 012U 40OD09 1K2 20 V.MN



IP
65

Saturn Mini with its lightweight compact housing is suitable for interiors which needs less lumen output relatively with SATURN V.E. Only presence detector-integrated versions are available.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12.2 W 1295 lm 106 lm/W 3927 K 80
STR 012U 40OD09 1K2 20 V.MN

STR 012U 40OD09 1K2 20 V.MN

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 70 mm

Diameter: 262 mm

Adjustability

Fixed

Electric

System power: 12.2 W

Protection

IP: 65

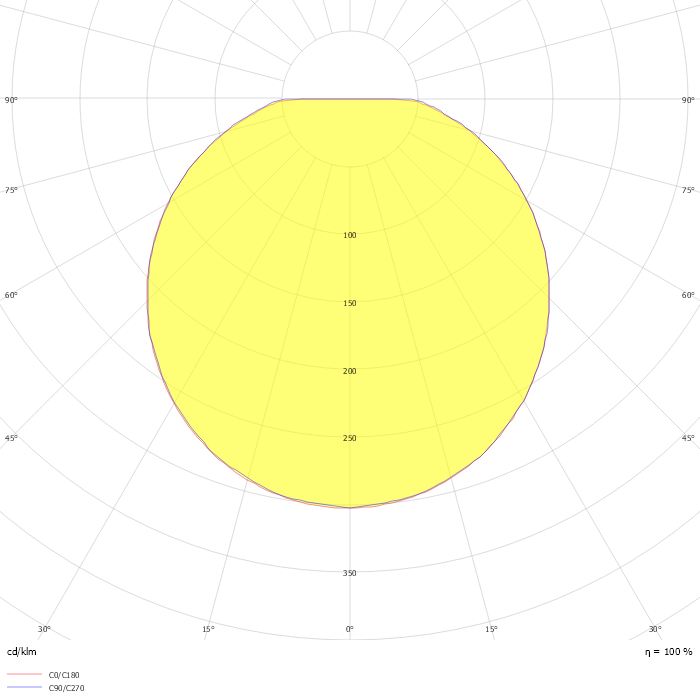

Photometric data

ZIP file

Download file
