Product data sheet

LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

M485SN962LED1RGB-A

Megalite

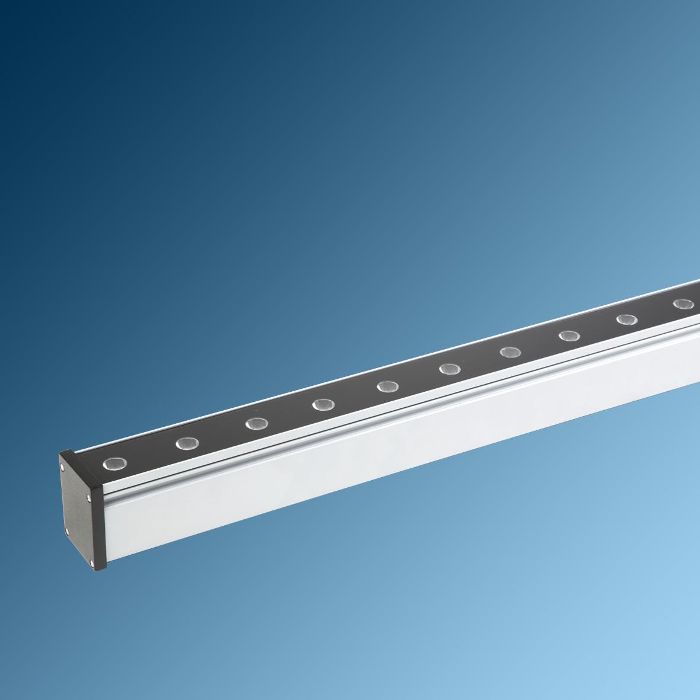

Product image 1: LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam
Product image 1: LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

Product image 1: LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam



IP
65

LEDILINE RGB LED surface mount luminaire is Megalite state of the art design suitable for architectural and façade lighting used in outdoor application such as bridges, building facades, pillars and etc. Specially designed lenses results in wide or narrow light distribution. Sturdy body and high ingress protection IP65 are among the highlights of LEDILINE

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 16 W 204 lm 13 lm/W 0 K -50
LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 15 W 684 lm 46 lm/W 7247 K -18
LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 15 W 312 lm 21 lm/W 0 K -29
LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

LEDiLINE 1200 Lm 46W High power LED Wall-washer Luminaire ; RGB ; narrow Beam

Light output 3 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 60 mm

Width: 965 mm

Height: 80 mm

Adjustability

Fixed

Electric

System power: 46 W

Protection

IP: 65

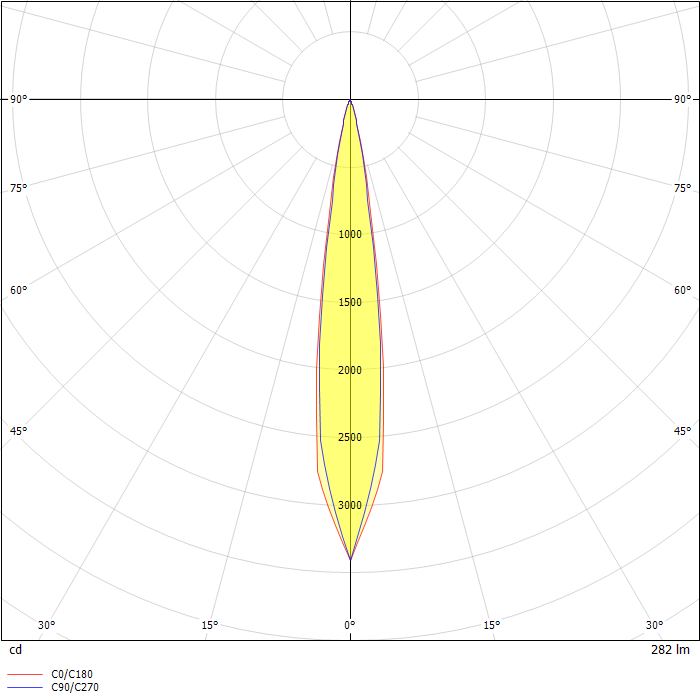

Photometric data

ZIP file

Download file
