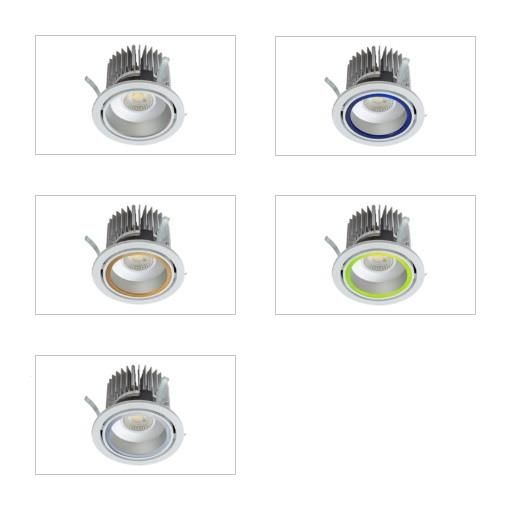

Protec LED High Output - Ø174mm, IP20 Recessed High Output Downlighter with a 60 Degree Lens, ABS housing and bezel, zinc plated spring steel fixing clips and anodised semi specular aluminium reflector and drop glass ring. E3 - Emergency control gear (416 lumens output) - Attachments may reduce emergency lumen ouput. ST3 - Emergency Selftest AT3 - Emergency Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* Replace * with WH for White or GY for Grey Order the luminaire with trim accessory attachment
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 4.2 W | 408 lm | 97 lm/W | 4000 K | 80 |
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 31.16 W | 4106 lm | 132 lm/W | 4000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 130 mm
Diameter: 175 mm
Adjustability
Fixed
Electric
System power: 35.36 W
Ballast: ECG
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 20
Designation labels: CE

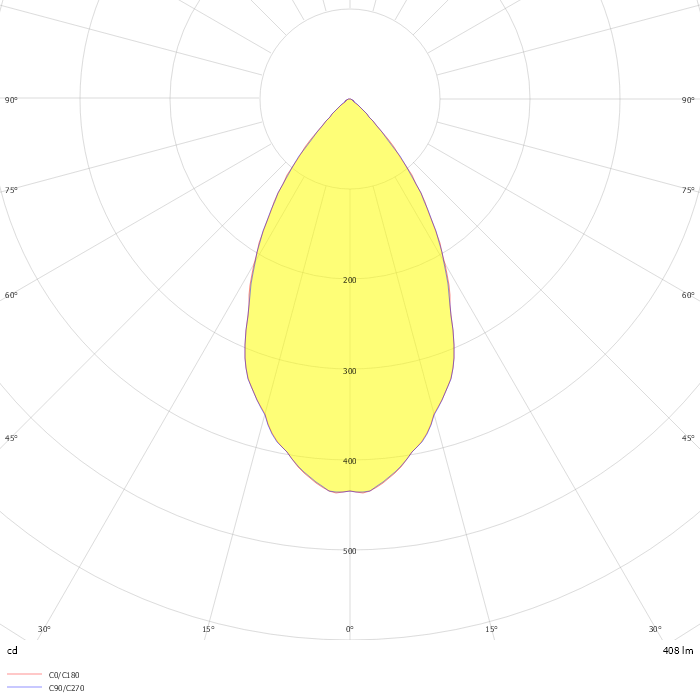

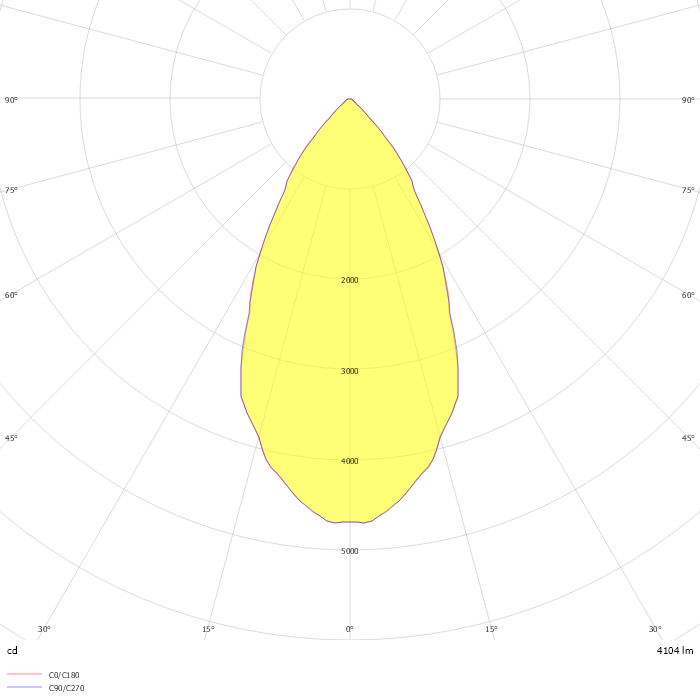

Photometric data
ZIP file
