Product data sheet

POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam

9883100541-H1

Norka

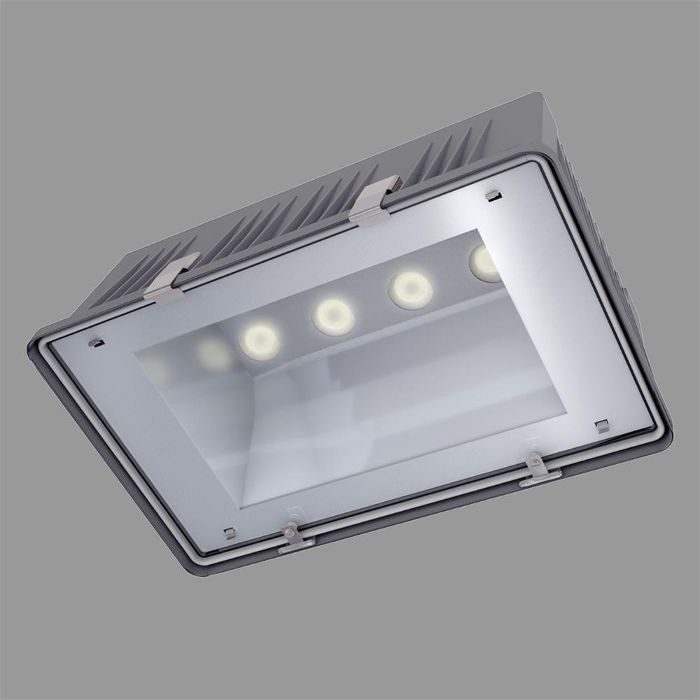

Product image 1: POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam
Product image 1: POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam

Product image 1: POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam



IP
65

IK
10

Strahlerleuchten mit LED-Array-Bestückung. Einsetzbar in Kühlhäusern, Lager-, Versand- und Außenbereichen, Industriekränen. POLARIS HT Ausführung bis +65 °C. Robustes Leuchtengehäuse aus Aluminium-Druckguss, mit lackierter Oberfläche, Farbe RAL 9006. Einsetzbar im Innen- und Außenbereich gemäß Schutzart IP 65. Dichtungssystem bestehend aus alterungsbeständigem formstabilem Silikon-/ Synthese-Kautschuk. Abklappbare, rahmenlose Abschlussscheibe aus PC (bruchsicher) glasklar, Sicherheits-Abschlussglas (ESG) glasklar oder strukturiertes Sicherheits- Abschlussglas (ESG). Innenliegender Aluminium-Reflektor (MIRO-SILVER®) mit Aufnahme für eine Prismenscheibe zur asymmetrischen (ADP) oder rotationssymmetrischen (CDP) Entblendung oder zur Entblendung in Längsrichtung der Leuchte (LDP). Leuchte montage- und anschlussfertig. Eingebautes Betriebsgerät, Versorgungsspannung 220-240 V AC/DC. Deckenbefestigung durch zwei Befestigungsbolzen M10 oder Schwenkbügel aus Edelstahl. Weight: 11 kg; Fire resistance D: YES; LUCON: YES; Ball impact resistant: NO; Light sensor: NO; Version: 310; Lamp service life: L80 B10 > 60,000 h at +45°C; Extreme-temperature: -35°C to +45°C; Housing material: aluminium; Colour housing: Aluminium similar to RAL 9006; Material / Cover: PC (fracture proof) clear; Light distribution: concentrated beam; ENEC / VDE: YES / YES; Lamp power: 58 W; max. System power: 184 W; Colour temperature: White, 850/5000 K, Ra > 80; Protection class: I; IP-rating: IP65; Type of gear: LED operating device current-controlled, DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz; Usage: architectural lighting, farming and animal husbandry, swimming pool/ chlorine resistant (optional), sports/ multipurpose hall, low temperature areas, production; Impact strength: IK10;

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
3 x LED 61.333 W 10333 lm 168 lm/W 5000 K 85
POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam

POLARIS 310, PC (fracture proof) clear, 5000K, ceiling installation, concentrated beam

Light output 1

3 x LED

Mounting mode

Ceiling mounted, Ceiling recessed

Shape and measurements

Length: 528 mm

Width: 318 mm

Height: 200 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 184 W

Protection

IP: 65

IK: 10

Designation labels: CE

Other operating numbers

Ambient temperature range: -35...45°C

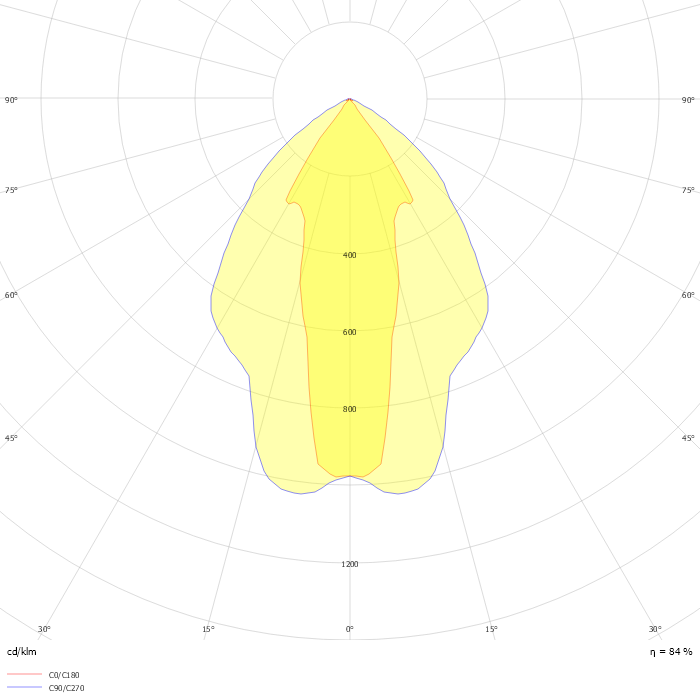

Photometric data

ZIP file
