Product data sheet

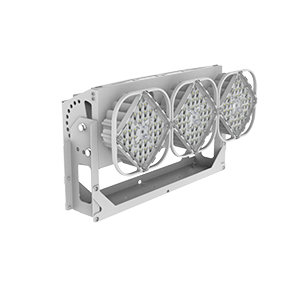

Floodlight

V1-I0-701X3-04D19-6521050 AirQub 210 W 210W 5000K DALI 20°

VARTON

High-power floodlight with a wide range of wattage and optics. Best lumens/mass/size ratio in its class of solutions. Material: Cast aluminum radiator, steel body parts, acrylic optic. Installation: Surface-mounted using an adjustable bracket. Angle of rotation: 0° to 135° in 5° increment. The luminaire has a wire for connecting to the mains. Wire length 1 meter. Application: Outdoor areas. Industrial facilities. High-mast lighting. Input voltage (AC, 50Hz), V: 90...305 AC frequency, Hz: 50 Input voltage (DC), V: 127...300 Flicker, %: 5 Climatic modification and category of placement: УХЛ1 Protection class: I Ingress protection (IP): IP67 Impact resistance: IK01 Power factor: 0,95 https://www.varton.ru/products/prozhektory/airqub/airqub-210-vt/svetodiodnyy-prozhektor-varton-airqub-210-vt-5000-k-20-dali/

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 210 W 32250 lm 154 lm/W 5000 K 70
Floodlight

Floodlight

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 540 mm

Width: 280 mm

Height: 275 mm

Adjustability

Fixed

Electric

System power: 210 W

Protection

IP: 67

IK: 01

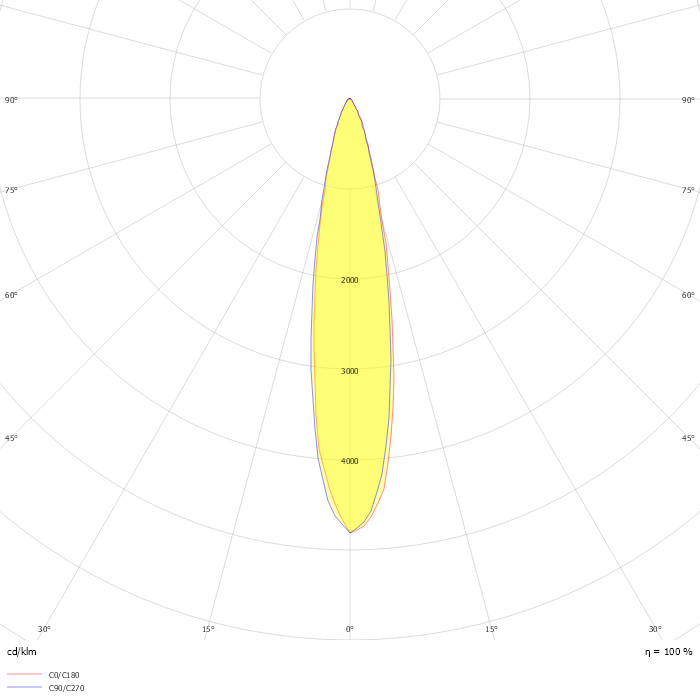

Photometric data

ZIP file
