Product data sheet

LED Downlight Square 36W 6500K

DLS-312T

MPE

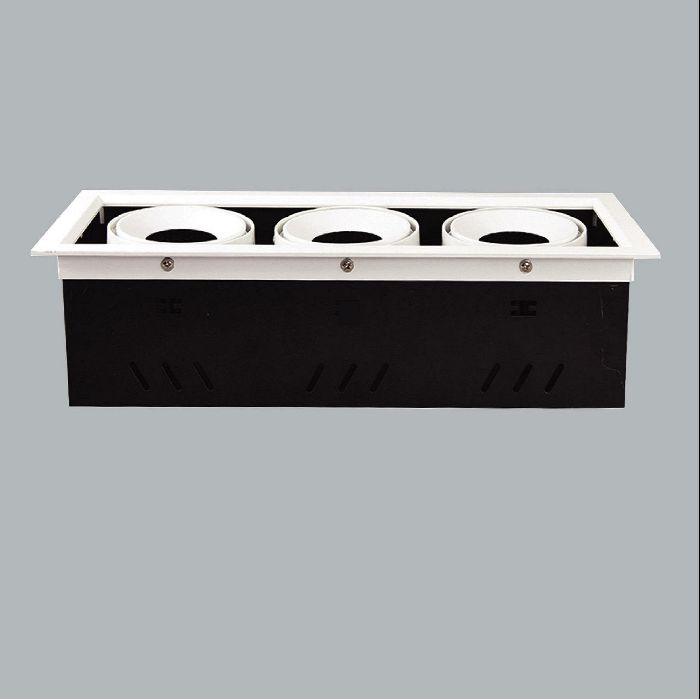

Product image 1: LED Downlight Square 36W 6500K
Product image 1: LED Downlight Square 36W 6500K

Product image 1: LED Downlight Square 36W 6500K



IP
20

- Square shape - Recessed – mounted on ceiling - Alloy alluminum body - Can adjust the direction of the lighting surface - Size: 140 x 390 x 130 mm - Cut out: 120 x 370 mm - Voltage: 100-265VAC - Power: 36W - Power Factor (PF): >0.5 - Luminance: 3060 lm - Color Temperature (CCT): 6000-6500K - RA >80 High Color Rendering Index - Beam angle: 24⁰ - Chip LED: COB ( Chip on Board) - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 36 W 3240 lm 90 lm/W 6500 K 82
LED Downlight Square 36W 6500K

LED Downlight Square 36W 6500K

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 141 mm

Width: 380 mm

Height: 112 mm

Adjustability

Free

Electric

System power: 36 W

Protection

IP: 20

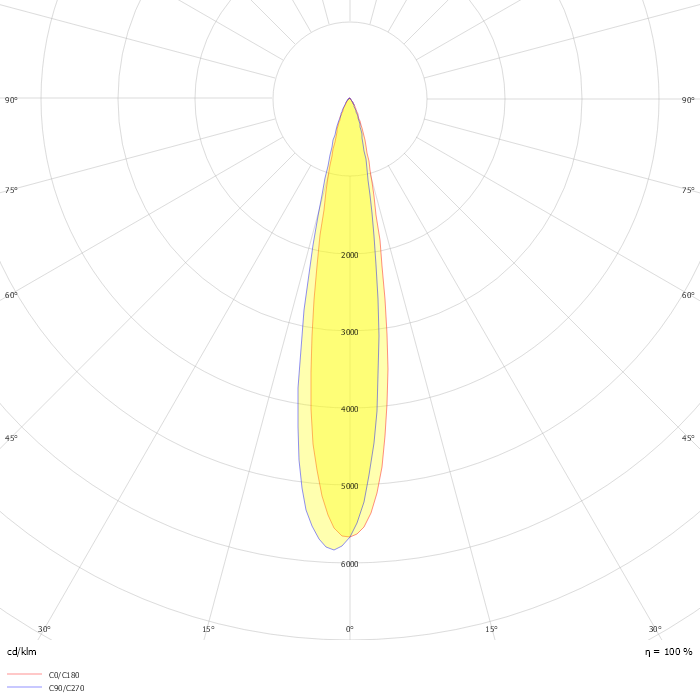

Photometric data

ZIP file

Download file
