Product data sheet

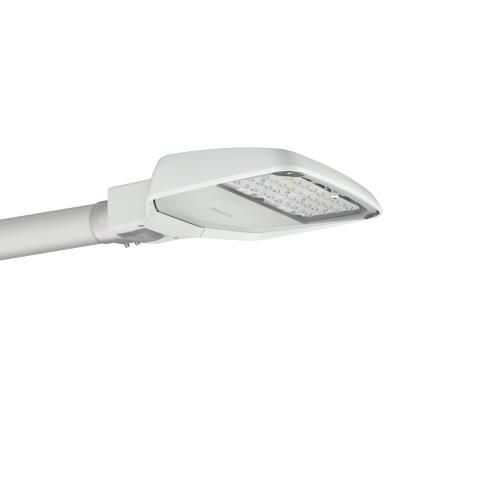

ClearWay gen2 BGP307 T25 1 xLED25-4S/727 DN26

BGP307

Philips

Versatile and cost-efficient LED lighting ClearWay Gen2 enables you to enjoy the benefits of LED technology for urban lighting right from the start. This new second generation of the luminaire builds on the strengths of its predecessor and is designed to further minimize your Total Cost of Ownership. ClearWay Gen2 significantly improves the most important aspects of the street lighting experience compared to conventional urban lighting. Ideal for new streets and for renovating existing installations, this affordable range of urban ClearWay lighting solutions combines clean design, high-quality light with significant energy and maintenance savings. In short, ClearWay Gen2 means good quality light with all the added benefits of LED - energy savings and long lifetime. Offering more benefits, yet packaged in a thinner and lighter design, which makes it easier to install.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 19.2 W 2500 lm 112 lm/W 2700 K 70
ClearWay gen2 BGP307 T25 1 xLED25-4S/727 DN26

ClearWay gen2 BGP307 T25 1 xLED25-4S/727 DN26

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 1500 mm

Width: 78 mm

Height: 39 mm

Weight: 2.36 kg

Design

Material impression: Stainless steel

Colour of housing: White

Electric

System power: 19.2 W

Protection

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: 0...40°C

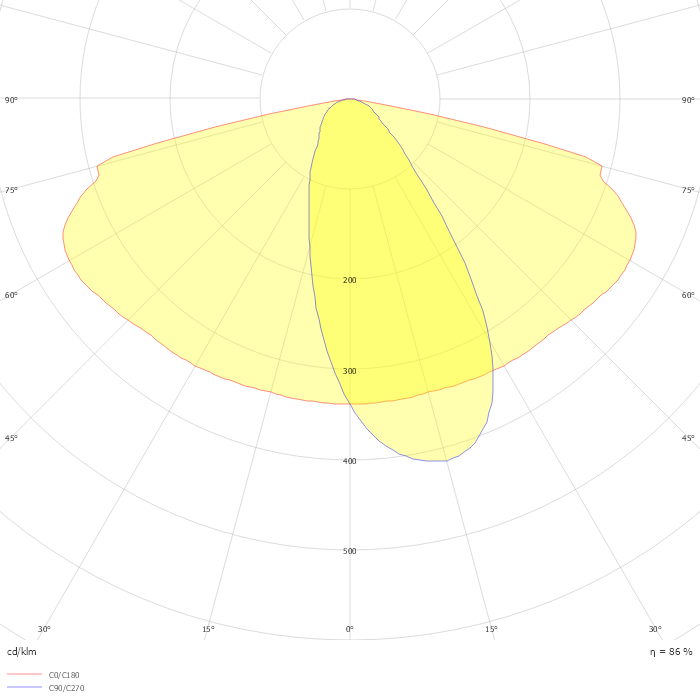

Photometric data

ZIP file
