Product data sheet
MICROSPY IN OK 93015
24111 9310
Delta Light

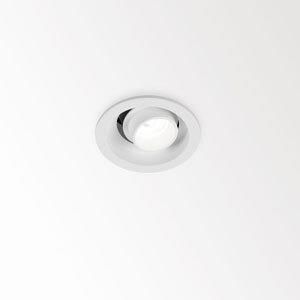

Luminaire, ceiling recessed (indoor use) from Deltalight, named MICROSPY IN OK 93015, available in the colour(s): black, white. For recessed mounting, a round opening with a diameter of 54 mm is needed and a min. depth for recessing of 75 mm. This luminaire is equipped with LED array 3,9-5,1W / CRI>90 (R9: 55) / 3000K / 385-480lm with an optional driver, suitable for currents of 350mA to 450mA. Light distributor: lens 15°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 5 W | 480 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
| 1 x LED | 4 W | 385 lm | 96 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 1 mm
Diameter: 59 mm
Weight: 0.1 kg
Electric
System power: 4-5 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

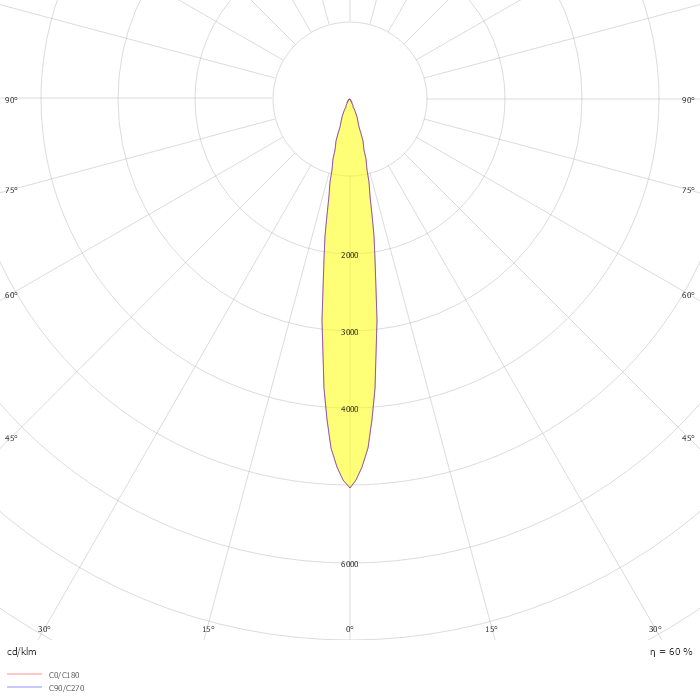

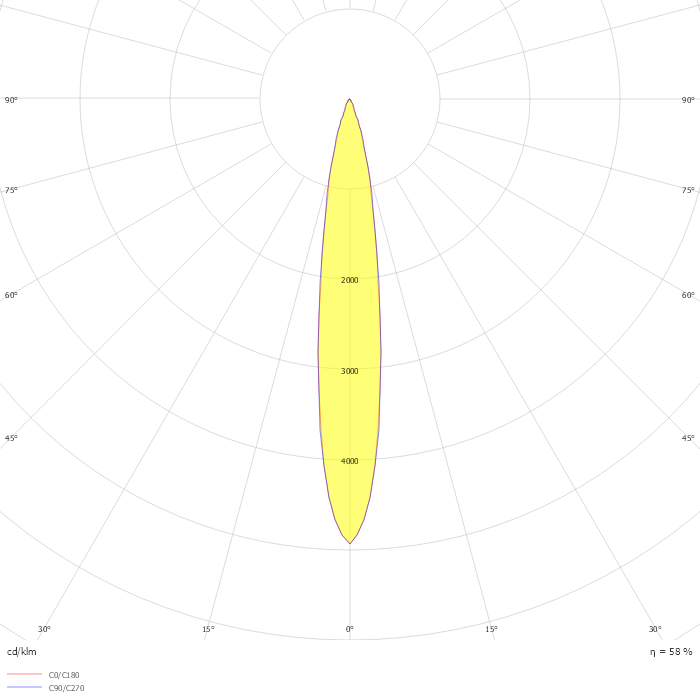

Photometric data
ZIP file
