Your products (0)

Product data sheet

V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K

8683

V-TAC

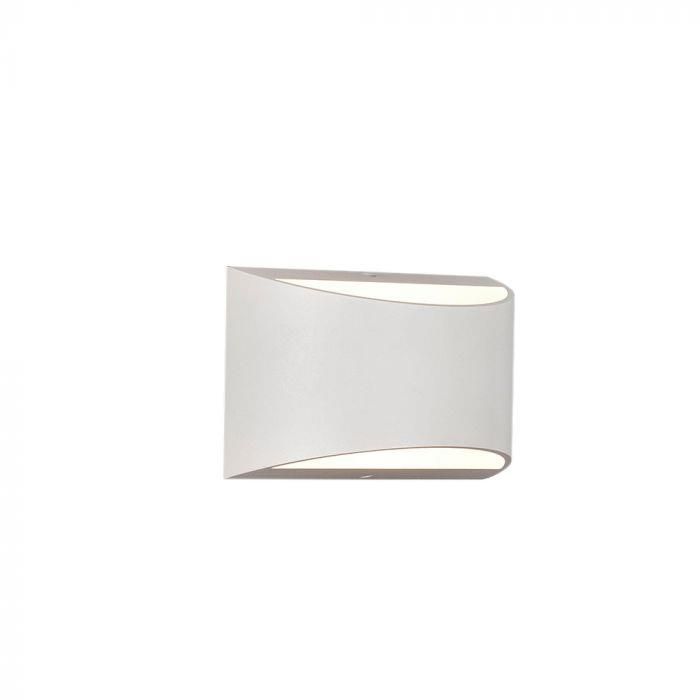

Product image 1: V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K
Product image 1: V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K

Product image 1: V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K



IP
54

V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10 W 800 lm 80 lm/W 4000 K 80
V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K

V-TAC 10W LED Wall Lamp Bridgelux Chip White Body 4000K

Light output 1 (integrated)

LED

Mounting mode

Wall mounted, Ceiling mounted

Shape and measurements

Length: 230 mm

Width: 180 mm

Height: 155 mm

Adjustability

Fixed

Electric

System power: 10 W

Protection

IP: 54

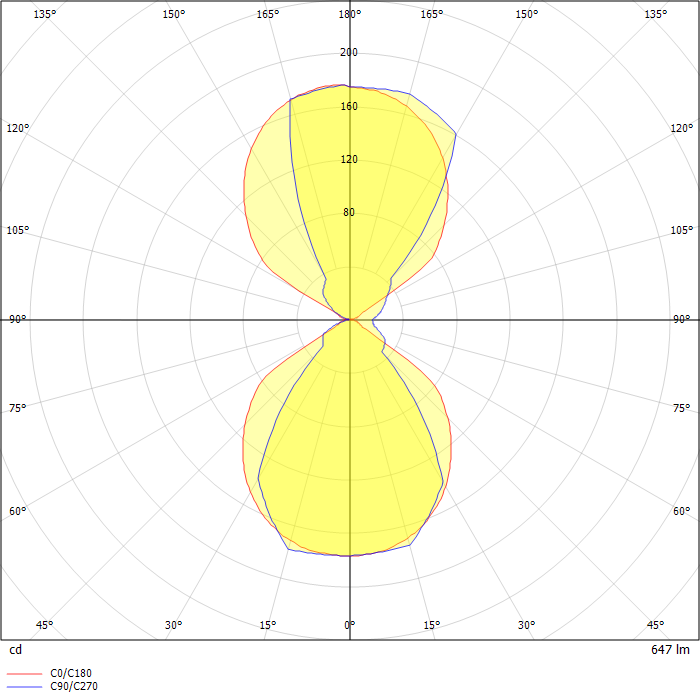

Photometric data

ZIP file

Download file
