Product data sheet

ATILEA

ATILEA-6480-ASY13-16LED-1700K-500 mA

Ragni

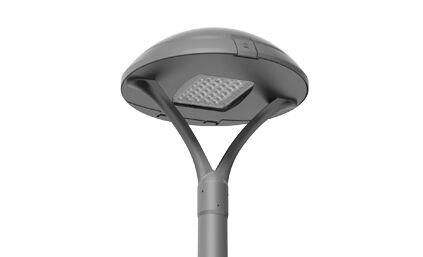

Atilea is a functional luminaire for road lighting. Circular and curved in shape, it is embellished with a hollow groove on its periphery, which can receive a decorative LED strip. It can be installed only in top of mast with a fitting depth of 80 mm. Delivered pre-wired, it is designed for easy installation and maintenance. Atilea is totally waterproof thanks to a high temperature extruded silicone seal. Compatible with LED, it has a dedicated integrated PCB (EVO2 module) and provides asymmetrical lighting.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24.1 W 2154 lm 89 lm/W 1700 K 70
ATILEA

ATILEA

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 500 mm

Width: 500 mm

Height: 500 mm

Adjustability

Fixed

Electric

System power: 24.1 W

Protection

IP: 66

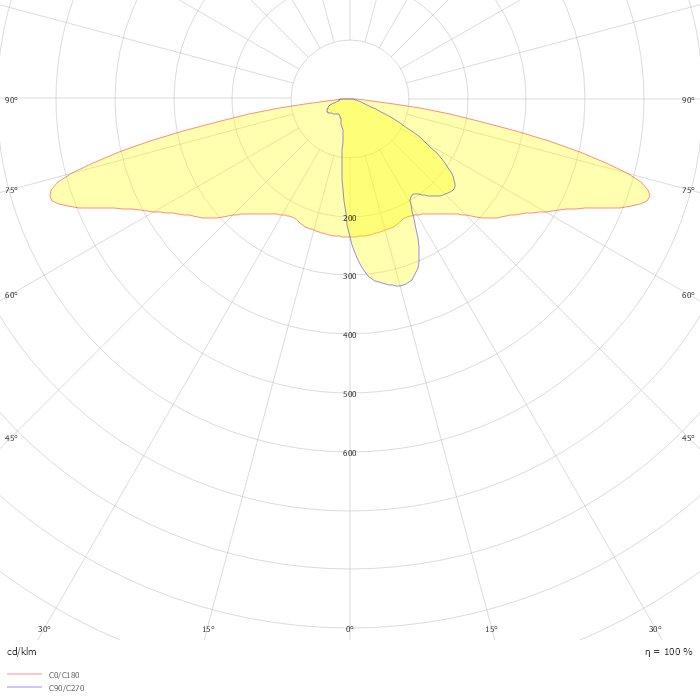

Photometric data

ZIP file
