Product data sheet

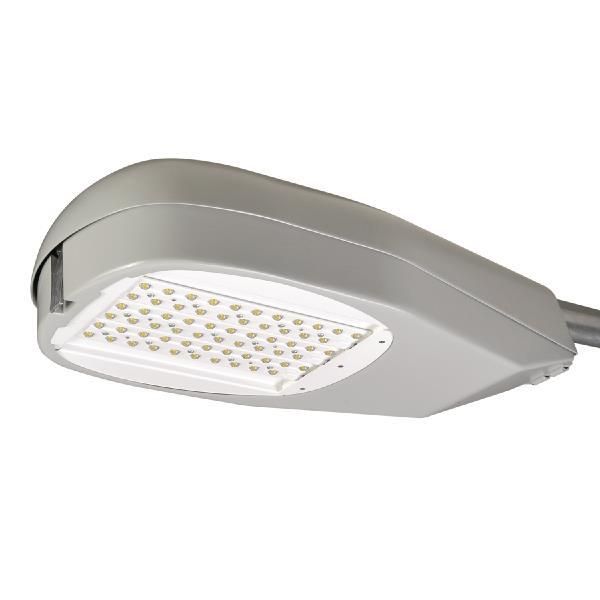

RC LED Roadway Small Cutoff Cobrahead

LDRC-SL3-E03-E-7030

Cooper Lighting

Die-cast aluminum housing, door and two-position latch, Integral hinges for hands-free maintenance and tool-less entry, Optical design creates consistent distribution and scalability, Choice of 12 high-efficiency, patented AccuLED Optics™, Standard in 4000K (+/- 275K) CCT and nominal 70 CRI, Suitable for operation in -40°C to 40°C ambient environments, Proprietary circuit module withstands 10kV of transient line surge, IP66 Rated LightBARs, Five-year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 75.2 W 8134 lm 108 lm/W 3000 K 75
RC LED Roadway Small Cutoff Cobrahead

RC LED Roadway Small Cutoff Cobrahead

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 52 mm

Width: 305 mm

Height: 10 mm

Adjustability

Fixed

Electric

System power: 75.2 W

Protection

IP: 47

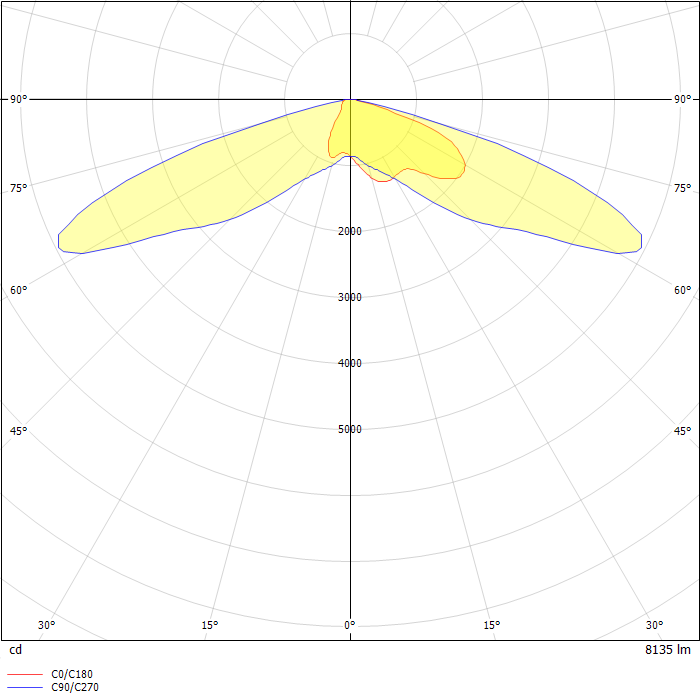

Photometric data

ZIP file
