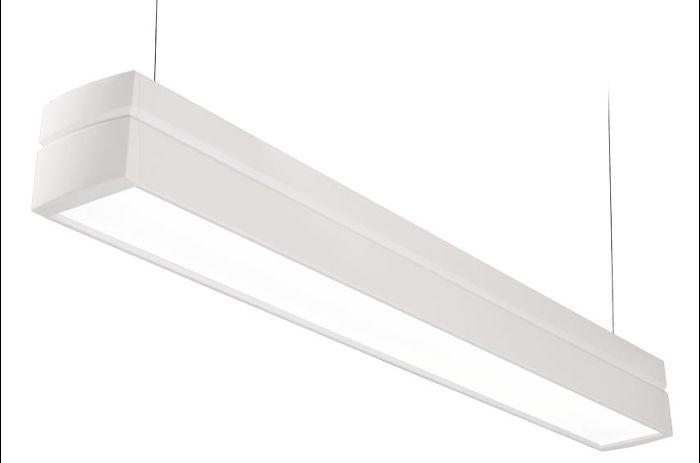

Facet II is a slim, minimalistic luminaire with white powdercoating. With the direct/indirect light and glare-free optics in PMMA it is perfect for classrooms or open offices where light comfort is very important. The wall bracket (accessory) makes it a prefect choice for blackboard lighting. Plug-and-play solution for quick installation. Light distribution Direct/Indirect Light technic LED 29W 4000K Ra> 80 SDCM 3 L80/B10 >100,000 hrs L94 >50,000 hrs Control/Dimming DALI Protection Class I IP20 Materials and finish Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Mounting/Connection Suspended, Indoor 2x2m wire kit w/loop M4 Cable 5x0,75mm² 2,5m white Max. luminaires per circuit breaker: B10: 13, B16: 24, C10: 21, C16: 38
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 29 W | 4700 lm | 162 lm/W | 4000 K | 80 |
Mounting mode
Pendant
Shape and measurements
Length: 1196 mm
Width: 112 mm
Height: 95 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 29 W
Appliance Class: I
Protection
IP: 20

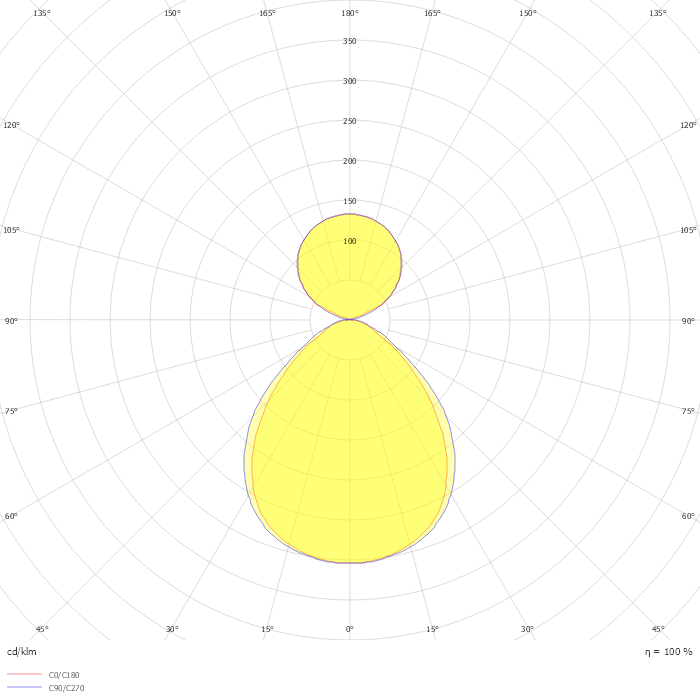

Photometric data
ZIP file
