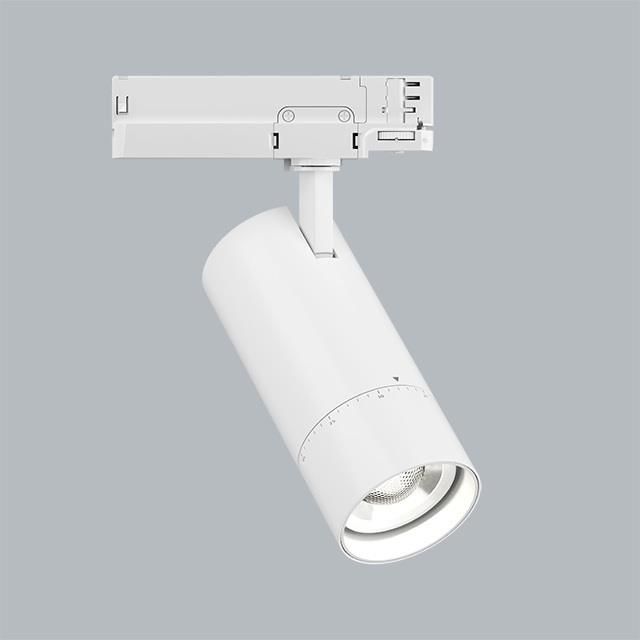

Indoor luminaire. Assembly: mounted on a three-phase track. The body material is aluminum. Colour - RAL 9016 (white). Luminaire dimensions: Ø80 x 185 mm. Diffuser: optical system based on PMMA lenses. Beam angle: 20°-60°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>90. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 1578/1682/1734 (20/40/60°) lm. Power of luminaire: 12,8 W. Luminaire's light efficiency: 123,3/131,3/135,4 (20/40/60°) lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 30 (B10), 50 (B16), 50 (C10), 80 (C16). Operating temperature range: 5 ÷ 35° C. Protection degree: IP20. Impact resistant: IK04. Protection against electric shock: II. Photobiological risk class (IEC/EN 62471): RG0.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 12.8 W | 1880 lm | 147 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 185 mm
Diameter: 80 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 12.8 W
Appliance Class: II
Protection
IP: 20
IK: 04
Other operating numbers
Ambient temperature range: 5...35°C

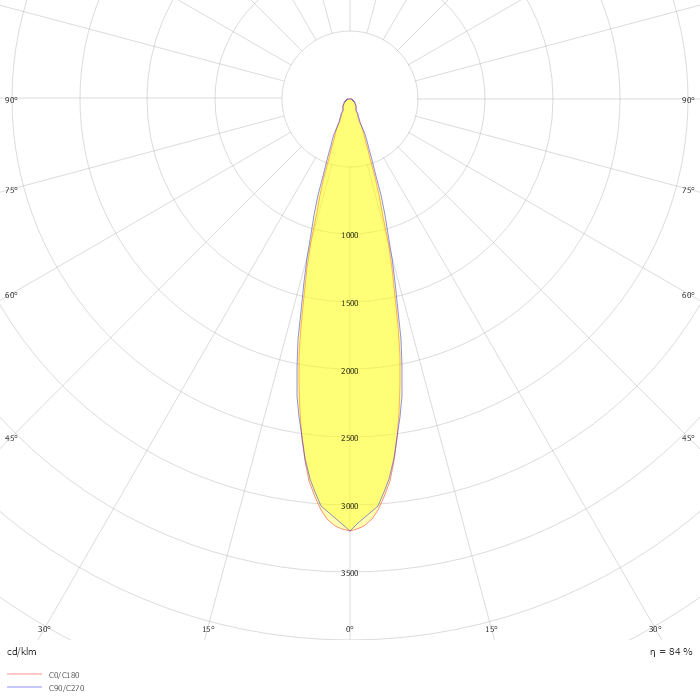

Photometric data
ZIP file
