Product data sheet

S36H-PD237 DAFWS830DPS0400

SPG0630288AH

RIDI

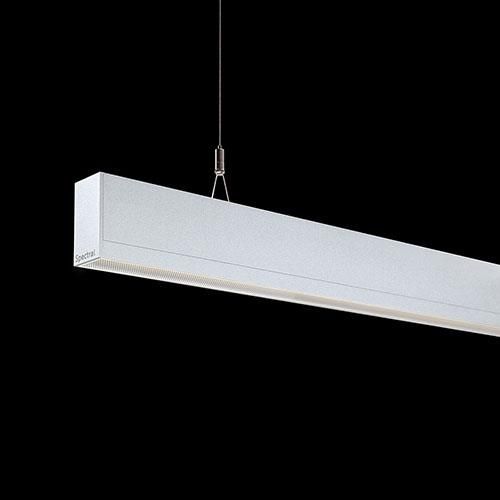

Pendant luminaire S36H Design: Modern direct distribution pendant luminaire. Luminaire made from aluminium profile, white (…FWS…), silver (…SI…) or black (…FSW…),fine-grained. Suspension of luminaire via Y-shaped steel wire, max. 1.5 m in length, smooth height adjustment. Transparentconnecting cable, 1.5 m in length. Luminaire fitted with RIDI LED modules. LED module for direct component mounted at the bottom in the aluminium profile. Direct component covered by a transparent extruded plastic cover, in clear UV stabilised PMMA with external diamond-shaped microprism structure to reduce glare. LEDs visible as dots. All electrical components are integrated into the luminaire. Colour rendering in index at least Ra 80, light colour 830 (3000 Kelvin), 840 (4000 Kelvin) or TW (TunableWhite, 3000–6500 Kelvin). Protection rating IP20, protection class I.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 45 W 3930 lm 87 lm/W 3000 K 80
S36H-PD237 DAFWS830DPS0400

S36H-PD237 DAFWS830DPS0400

Light output 1 (integrated)

LED

Mounting mode

Pendant, Ceiling mounted

Shape and measurements

Length: 2375 mm

Width: 36 mm

Height: 70 mm

Adjustability

Fixed

Electric

System power: 45 W

Appliance Class: I

Protection

IP: 20

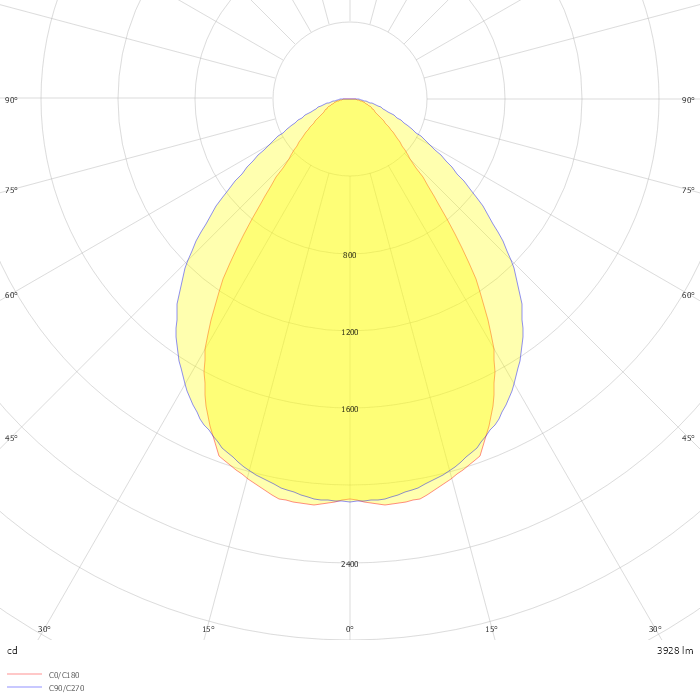

Photometric data

ZIP file
