Product data sheet

Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90

116090

ISOLED

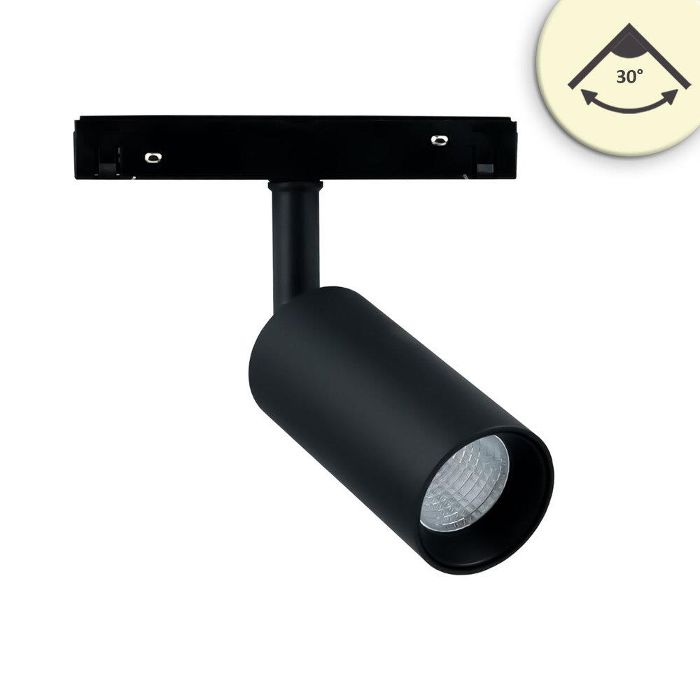

Product image 1: Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90
Product image 1: Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90

Product image 1: Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90



IP
20

Track48 Track light black, 16W, 30°, 48V DC, 3000K, CRI90 LED lights for Track48 NV magnetic track - black matt, IP20, 16W, 30° beam angle, 3000K color temperature, CRI90, 1300 lm luminous flux, 50000 h useful life, 3-year guarantee | Dimensioned wattage: 16 W | Effective wattage: 16 W | Energy efficiency class: F (EU 2019/2015) | Nominal Voltage: 48 V DC | Protection class: 3 | Surface color: matt black | Protection rating: IP20 | Suitable for indoor use only | Allowable ambient Temperatures: -10° - 40° C | Diameter: 60 mm | Dispersion angle: 30° fixed | variably adjustable | Color temperature: 3000K | Color rendering index: 90 (Ra 1-8) | Luminous flux: 1300 lm | Useful life: 50000 h (L80|B50) | Warranty: 5 years | | FABRICATION: ISOLED 116090

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 16 W 1300 lm 81 lm/W 3000 K 90
Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90

Track48 track light black, 16W, 30°, UGR<19, 48V DC, 3000K, CRI90

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Contact rail

Shape and measurements

Height: 127 mm

Diameter: 60 mm

Adjustability

Rotatable, Tiltable

Design

Material impression: Aluminum

Colour of housing: Black

Electric

System power: 16 W

Ballast: ECG

Appliance Class: III

Protection

IP: 20

Designation labels: CE

Other operating numbers

Ambient temperature range: -10...40°C

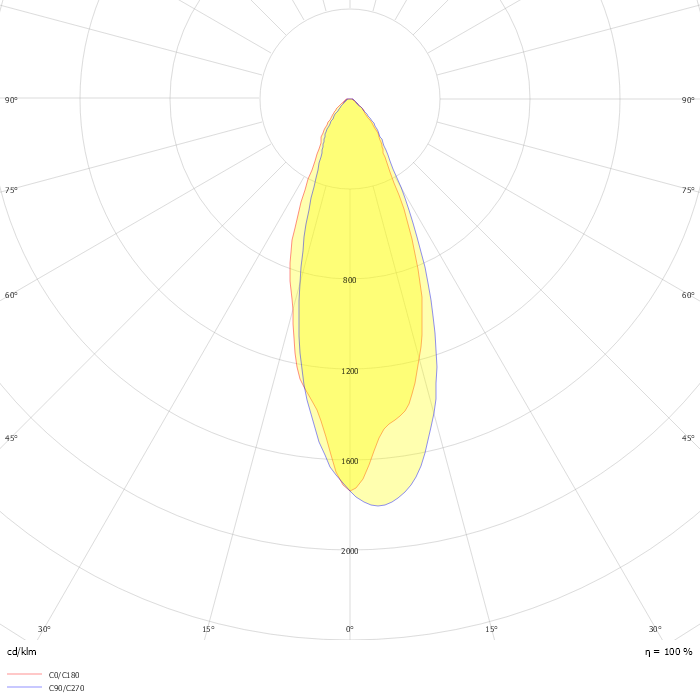

Photometric data

ZIP file

Download file
