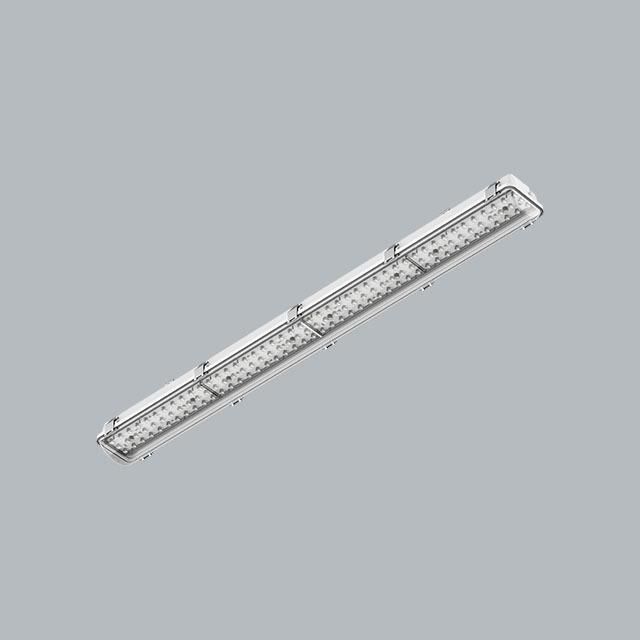

Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is polycarbonate. Colour - RAL 9006 (grey). Luminaire dimensions: 1563 x 115 x 110 mm. Diffuser: PC-T (transparent polycarbonate). The efficiency of the optical system is 88,84%. Beam angle: (C0-C180) / (C90-C270) - 115,2° / 114°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 90000 h L80/B10. Luminaire luminous flux: 13162,3 lm. Power of luminaire: 84,7 W. Luminaire's light efficiency: 155,4 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 10 (B10), 16 (B16), 16 (C10), 32 (C16). Operating temperature range: -25 ÷ 35° C. Protection degree: IP66. Impact resistant: IK10. Protection against electric shock: I.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
5 x LED | 16.94 W | 2963 lm | 175 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1563 mm
Width: 115 mm
Height: 110 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray
Electric
System power: 84.7 W
Appliance Class: I
Protection
IP: 66
IK: 10
Other operating numbers
Ambient temperature range: -25...35°C

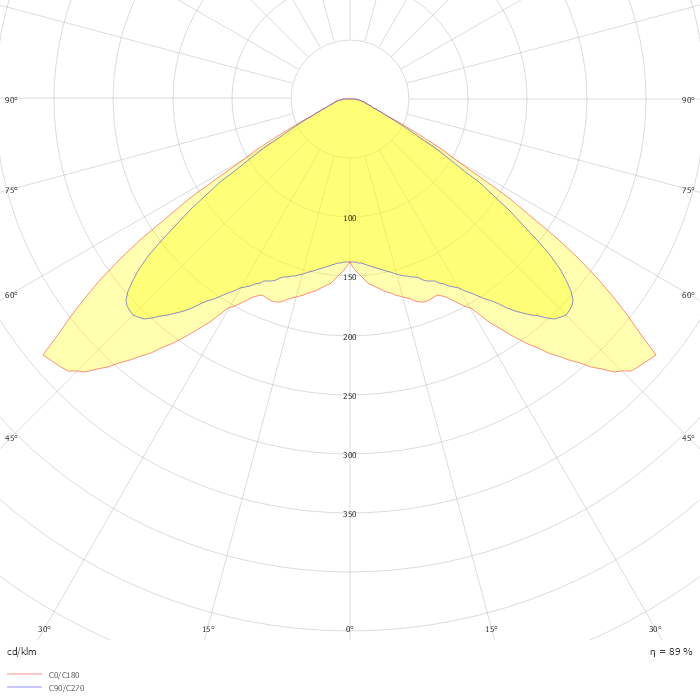

Photometric data
ZIP file
